HANDLING SPARE TIRE

id000000801700

Remove the Spare Tire

Note

•  Because the sub-woofer is not operational when the sub-woofer connector is disconnected, no sound is output from the sub-woofer. (with sub-woofer)

1.  Set the third-row seatbacks to their on-road positions.

2.  Raise the luggage board.

ac9uuw00008123

3.  Raise the luggage board a little white pulling it towards you, and then insert the bottom edge into the holders.

ac9wzw00004358

4.  Remove the tool bag.

5.  Disconnect the sub-woofer connector. (with sub-woofer)

ac9uuw00008128

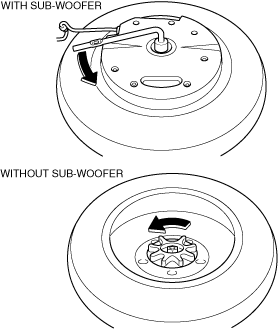

6.  Turn the hold-down bolt counterclockwise and remove the sub-woofer (with sub-woofer) and the spare tire.

ac9uuw00008129

Install the Spare Tire

Caution

•  Secure the sub-woofer in its correct position. If the sub-woofer is not installed to the correct position, it may move while the vehicle is driven which may damage the sub-woofer or the wiring harness. (with sub-woofer)

•  Store the tool bag on the right side of the vehicle. If the tool bag is stored on the left side of the vehicle, it may move while the vehicle is driven which may damage the wiring harness.

1.  Store the spare tire in the reverse order of removal. After storing, verify that the spare tire is stored securely.
