BLOWN FUSES
[TROUBLESHOOTING HINTS]
• Inspect condition of fuse.
NO.1 BLOWN FUSES [SKYACTIV-G 2.5T]
id0103q4507100
|
1 |
BLOWN FUSES |
|---|---|
|
[TROUBLESHOOTING HINTS]

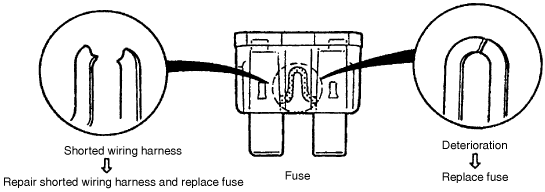

• Inspect condition of fuse.
|
|
|
|
|
Damaged fuse |
Related wiring harness |
|---|---|
|
MAIN
|
• FUEL PUMP2 fuse
• IG2 fuse
• ENG.+B fuse
• ROOM fuse
• ENG.MAIN fuse
• INJECTOR fuse
• EVVT fuse
• HAZARD fuse
• IG1 relay
|
|
FAN
|
• Cooling fan relay
|
|
ENGINE.IG1
|
• Fuel pump relay
• PCM
|
|
FUEL PUMP2
|
• Fuel pump relay
|
|
STR
|
• Starter
• Generator
|
|
DCDC1*2
|
• DC-DC converter
|
|
DCDC*3
|
• DC-DC converter (i-ELOOP)
|
|
AUDIO2*1
|
• Ignition relay (ACC_STAB)
|
|
METER2*1
|
• Ignition relay (IG1_STAB)
|
|
C/U IG1
|
• DC-DC converter*2
• DC-DC converter (i-ELOOP)*3
• Ignition relay (IG1_STAB)*1
• Generator*3
|
|
IG2
|
• Starter relay
• ACC relay
|
|
HAZARD
|
• Front body control module (FBCM)
|
|
ROOM
|
• ENG.+BB
|
|
ENG.+BB
|
• PCM
|
|
ENG.MAIN
|
• Main relay
|
|
INJECTOR
|
• Fuel injector relay
|
|
EVVT
|
• Electric variable valve timing relay
|
|
ENG.+B
|
• Current sensor*1
|
|
ENGINE1
|
• Electric variable valve timing relay
• A/F sensor
• HO2S
• MAF sensor/IAT sensor No.1
• Intake CMP sensor
• Three way solenoid valve
• Air bypass valve
• EGR valve
• CV solenoid valve (with CV solenoid valve)
|
|
ENGINE2
|
• Fuel injector relay
• Purge solenoid valve
• OCV
• PCM
• Exhaust CMP sensor
• Ignition coil/ion sensor No.1
• Ignition coil/ion sensor No.2
• Ignition coil/ion sensor No.3
• Ignition coil/ion sensor No.4
|
|
ENGINE3
|
• Active air shutter*4
• Cooling fan relay
• Electric AT oil pump relay*1
• Engine oil solenoid valve
• Engine oil level sensor
|
