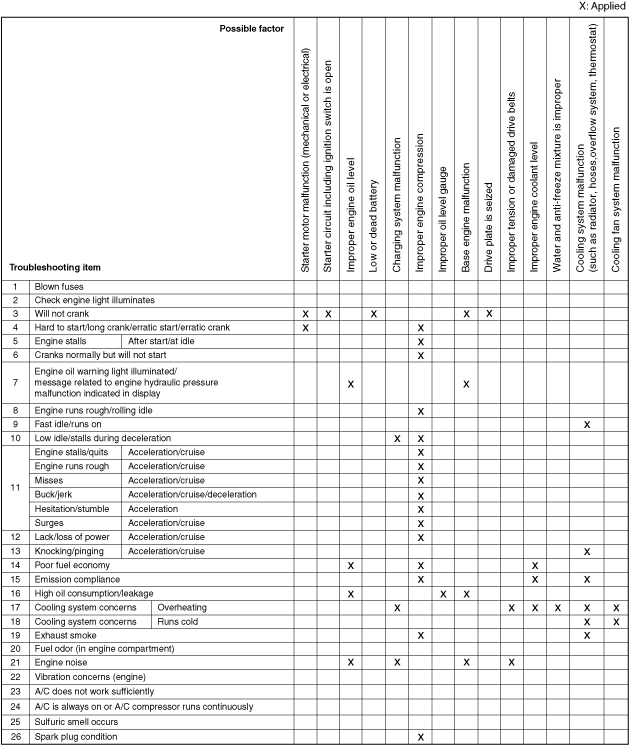

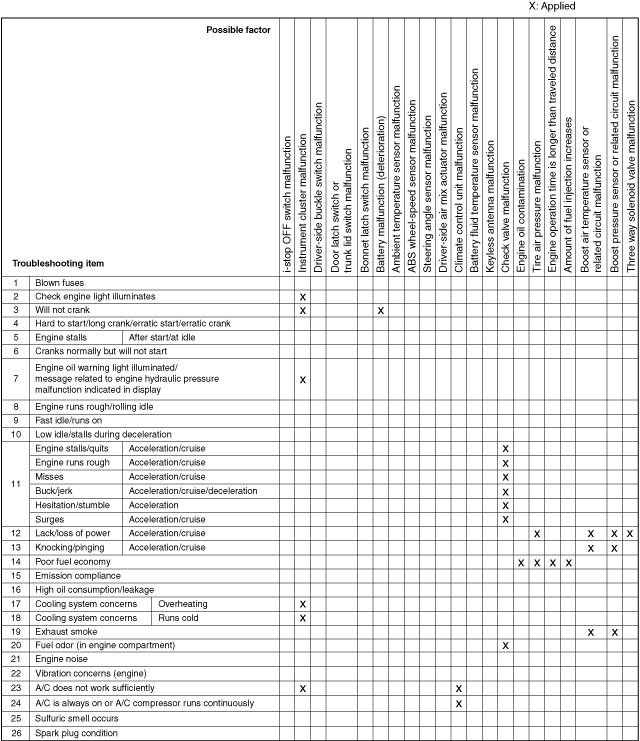

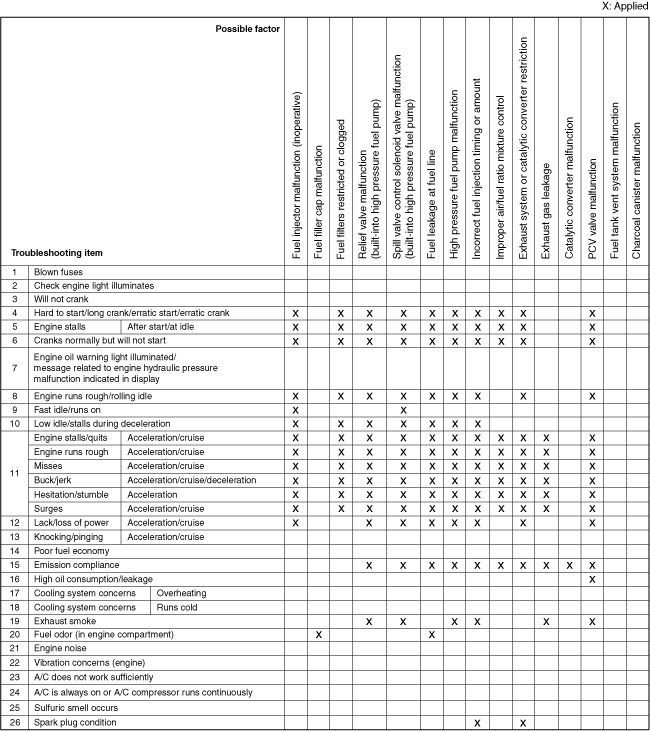

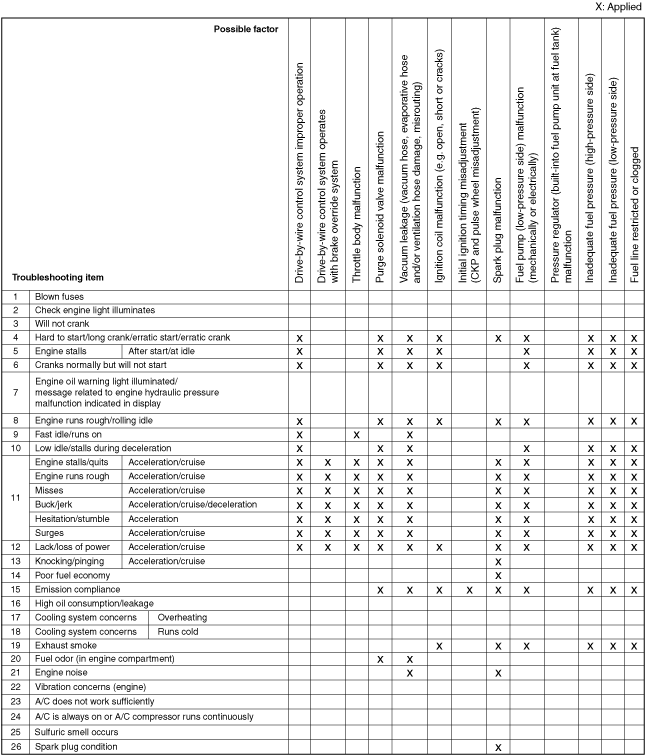

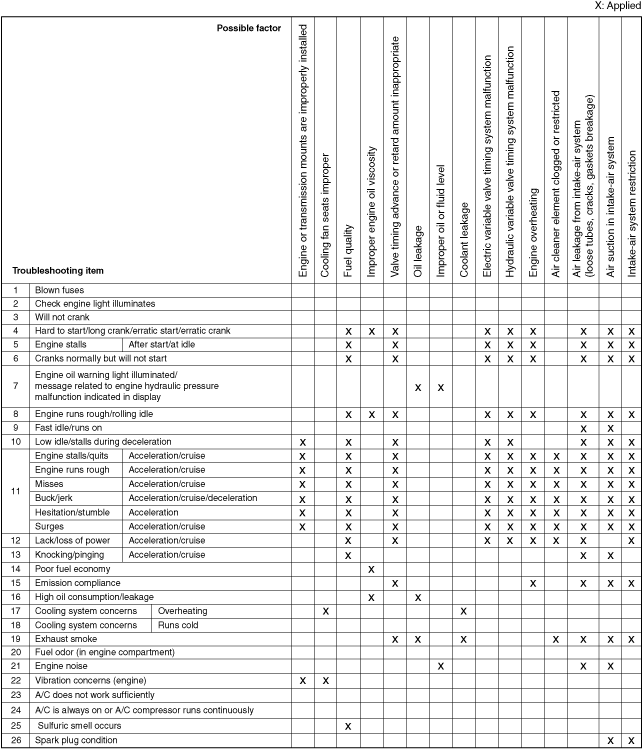

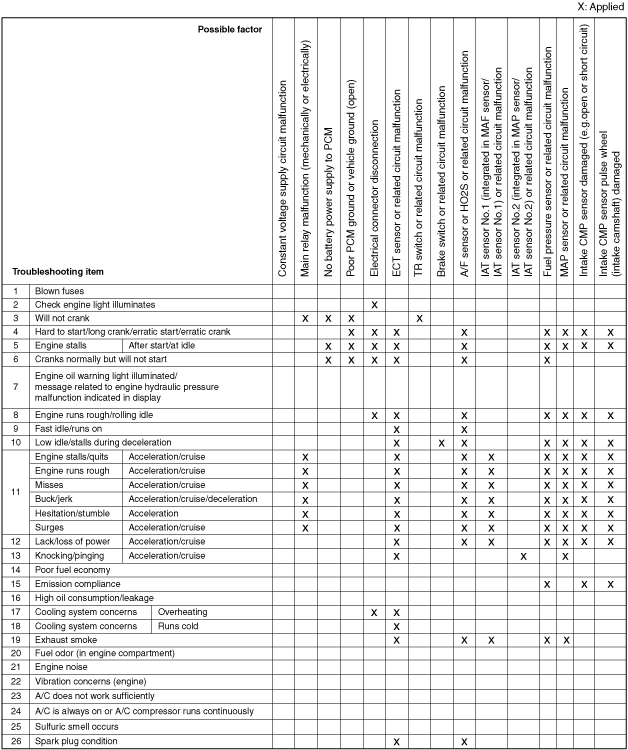

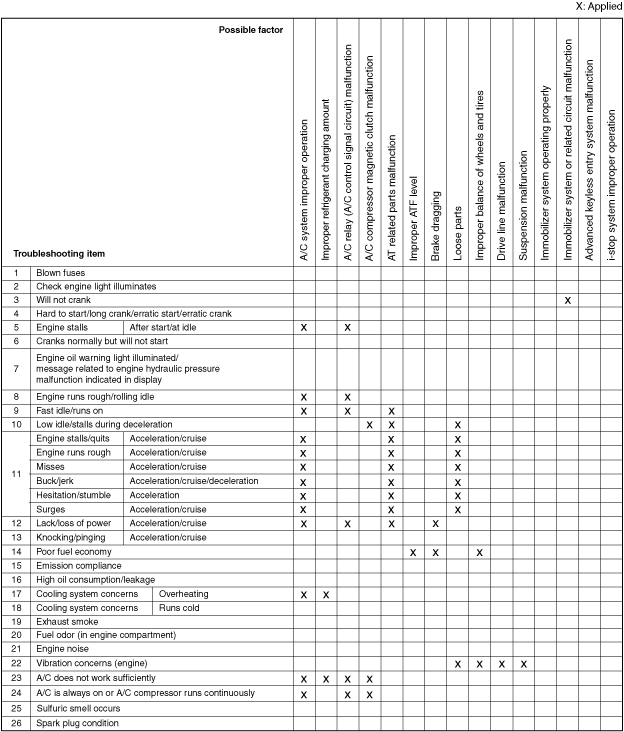

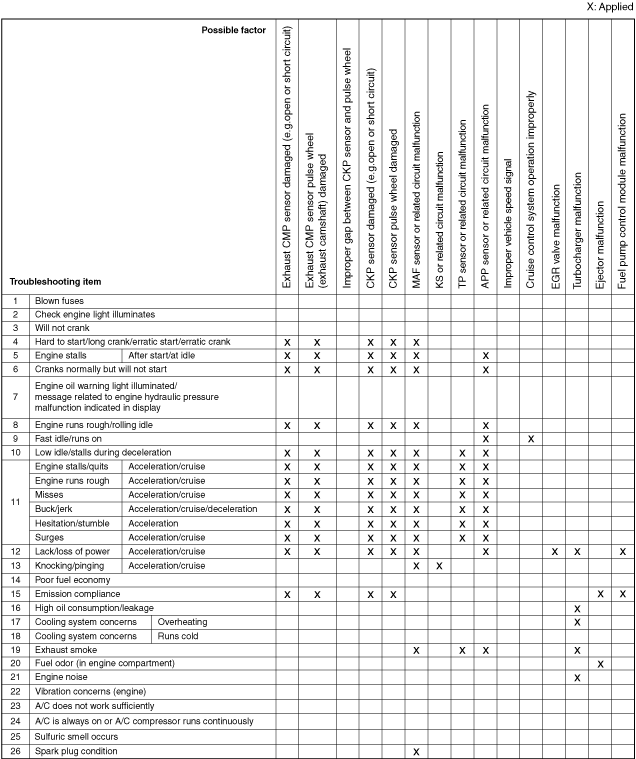

QUICK DIAGNOSTIC CHART [SKYACTIV-G 2.5T]

id0103q4800600

Note

•  For the relationship between each engine control and related parts, refer to the new vehicle introduction.
