PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0110q8803900

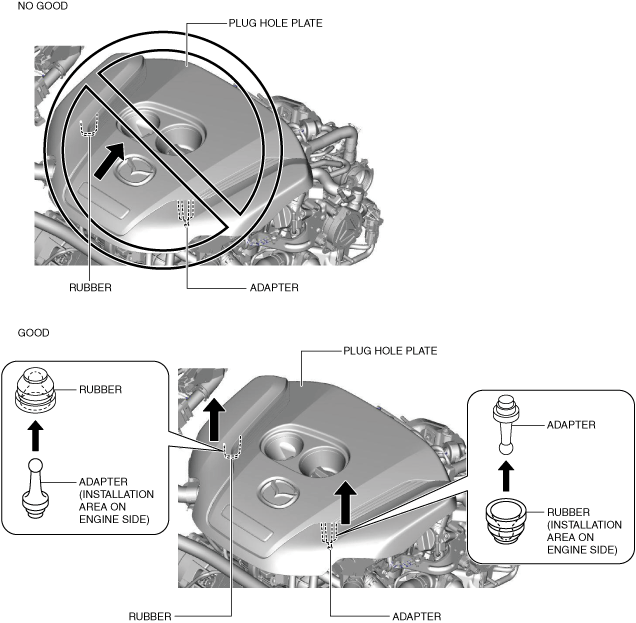

Caution

•  If the rubber on only one side of the plug hole plate front is lifted up, it could damage the adapter at the location shown in the figure. When removing the plug hole plate, lift up the rubber and adapter at the same time.

ac9uuw00006560

Removal

Caution

•  When removing the plug hole plate, pull it straight up. If the plug hole plate contacts the fuel hose at the position shown in the figure, the fuel hose could be damaged.

ac9wzw00004644

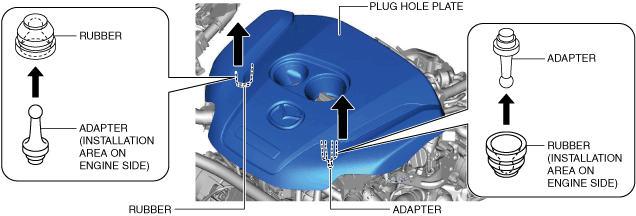

1.  Pull up the front part of the plug hole plate at the same time and remove the rubber and adapter from the engine side.

ac9uuw00006561

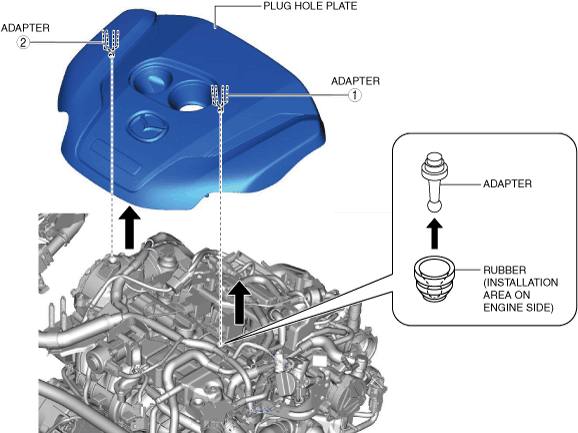

2.  Pull up the plug hole plate in the order shown in the figure and remove the adapter from the rubber on the engine side.

ac9uuw00006562

Installation

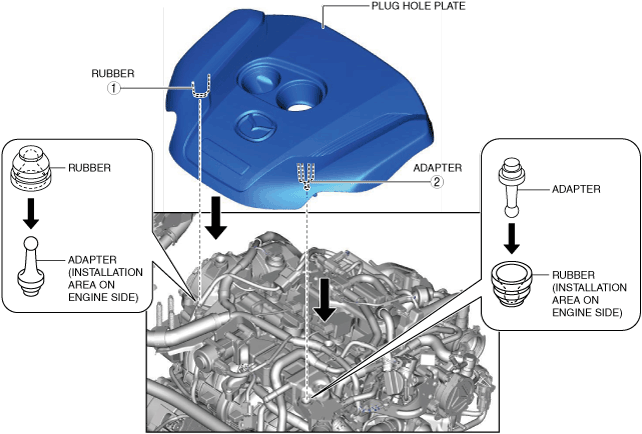

1.  Press the plug hole plate in the order of the numbers shown in the figure and insert the rubber and adapters into the engine.

ac9wzw00004645

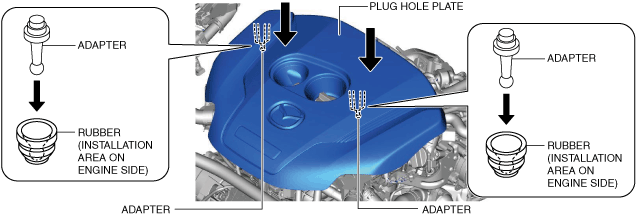

2.  While simultaneously pressing the areas indicated by the arrows on the plug hole plate, insert the adapters into the rubber on the engine.

ac9wzw00004646
