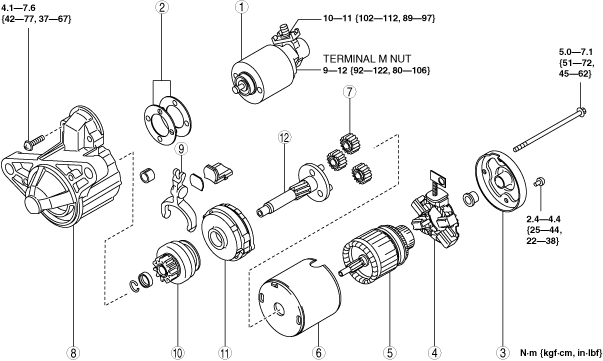

STARTER DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5T]
id0119q6104500
Without i-stop only
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
ac9uuw00006559
|
|
1
|
Magnetic switch
|
|
2
|
Adjustment washer
|
|
3
|
Rear housing
|
|
4
|
Brush and brush holder
|
|
5
|
Armature
|
|
6
|
Yoke
|
|
7
|
Planetary gear
|
|
8
|
Front cover
|
|
9
|
Lever
|
|
10
|
Drive pinion
|
|
11
|
Internal gear
|
|
12
|
Gear shaft
|
