ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [SKYACTIV-G 2.5T]

id0140h0802000

Warning

•  When the engine is hot, it can badly burn. Turn off the engine and wait until it is cool before removing the ECT sensor.

Resistance Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

3.  Remove the ECT sensor. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

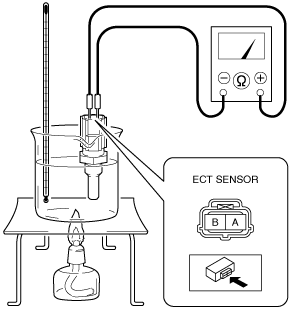

4.  Place the ECT sensor in water with a thermometer, and heat the water gradually.

ac9wzw00003862

5.  Measure the resistance between ECT sensor terminals A and B.

•  If not as specified, replace the ECT sensor. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

Specification (Reference)

ECT (°C {°F})	Resistance (Kilohms)
20 {68}	Approx. 2.45
80 {176}	Approx. 0.318

ac9wzw00005500
