REAR WHEEL ALIGNMENT
id021100800300
Rear wheel alignment (Unloaded)*1 [2WD]
|
Item |
Fuel gauge indication |
||||||
|---|---|---|---|---|---|---|---|
|
Empty |
1/4 |
1/2 |
3/4 |
Full |
|||
|
Total toe-in
|
Tire
[Tolerance ±4 {0.2}]
|
(mm {in})
|
2.0 {0.079}
|
||||
|
Rim inner
[Tolerance ±3 {0.1}]
|
Vehicle equipped with 18 inch wheel: 1.2 {0.047}
Vehicle equipped with 20 inch wheel: 1.4 {0.055}
|
||||||
|
(degree)
|
0°09?±0°20?
|
||||||
|
Camber angle*2 (Reference value)
[Tolerance ±1°]
|
-0°47?
|
-0°48?
|
-0°50?
|
-0°52?
|
-0°54?
|
||
|
Thrust angle (Reference value) [Tolerance ±0°48?]
|
0°00?
|
||||||
Rear wheel alignment (Unloaded)*1 [4WD]
|
Item |
Fuel gauge indication |
||||||
|---|---|---|---|---|---|---|---|
|
Empty |
1/4 |
1/2 |
3/4 |
Full |
|||
|
Total toe-in
|
Tire
[Tolerance ±4 {0.2}]
|
(mm {in})
|
2.0 {0.079}
|
||||
|
Rim inner
[Tolerance ±3 {0.1}]
|
Vehicle equipped with 18 inch wheel: 1.2 {0.047}
Vehicle equipped with 20 inch wheel: 1.4 {0.055}
|
||||||
|
(degree)
|
0°09?±0°20?
|
||||||
|
Camber angle*2 (Reference value)
[Tolerance ±1°]
|
-0°47?
|
-0°49?
|
-0°50?
|
-0°52?
|
-0°54?
|
||
|
Thrust angle (Reference value) [Tolerance ±0°48?]
|
0°00?
|
||||||

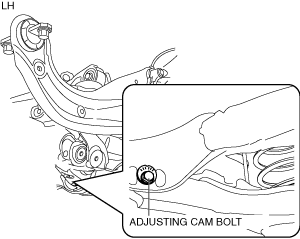

Total Toe-in Adjustment
1. Loosen the installation nut of the adjusting cam bolt.
2. Rotate the adjusting cam bolt in either direction to adjust the toe-in.
ac9wzw00005240
|
|
|
Left wheel |
Right wheel |
|---|---|---|
|
Toe-out direction
|
Clockwise
|
Counterclockwise
|
|
Toe-in direction
|
Counterclockwise
|
Clockwise
|
3. Tighten the nut.
