REAR STABILIZER REMOVAL [2WD]


id0214008041a1

1.  Remove the rear stabilizer control link.

ac9uuw00007988

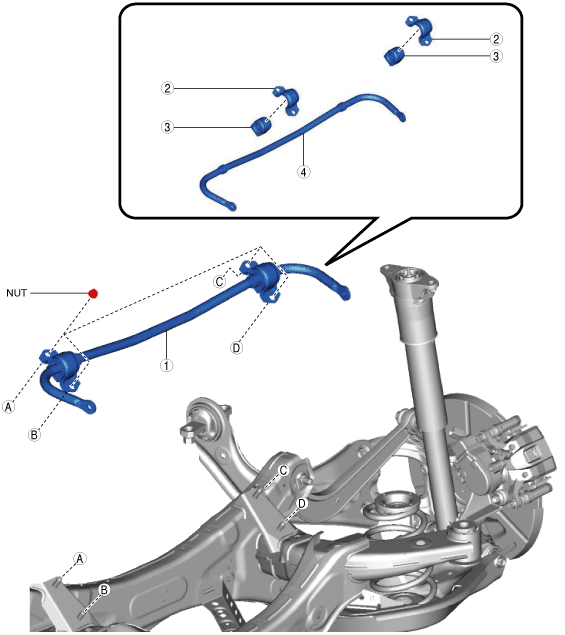

2.  Remove in the order indicated in the table.

ac9uuw00007989

1
Rear stabilizer component
2
Rear stabilizer bracket
3
Rear stabilizer bushing
4
Rear stabilizer

Rear Stabilizer Component Removal Note

1.  Remove the rear stabilizer component as shown in the figure.

ac9uuw00007990

Rear Stabilizer Bracket Removal Note

1.  Secure the rear stabilizer bracket flange using a vise.

ac5wzw00004596
