FRONT WHEEL HUB BOLT REPLACEMENT

id031100800200

Special Service Tool (SST)

49 T028 3A0   Ball joint puller set

1.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

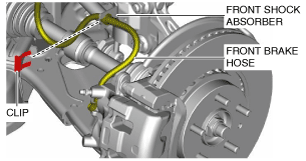

2.  Remove the clip from the front shock absorber.

ac9uuw00008013

3.  Remove the front brake hose from the front shock absorber.

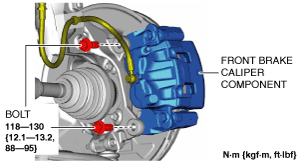

4.  Remove the front brake caliper component installation bolts.

ac9uuw00008014

5.  Remove the front brake caliper component and suspend it out of the way using a cable.

ac9uuw00008015

6.  Remove the front disc plate. (See FRONT BRAKE (DISC) REMOVAL/INSTALLATION.)

7.  Remove the wheel hub bolt using the SST as shown in the figure.

ac5uuw00000254

8.  Place a new wheel hub bolt in the wheel hub.

9.  Install the wheel hub by placing a proper sized washer on the hub, and tightening the nut as shown in the figure.

am3uuw00006182
