REAR DIFFERENTIAL MOUNT RUBBER REMOVAL/INSTALLATION

id031400803000

1.  Remove the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

2.  Support the rear differential component using a transmission jack.

ac9uuw00008077

3.  Place alignment marks on the rear crossmember and rear differential mount rubber as shown in the figure.

ac9uuw00008078

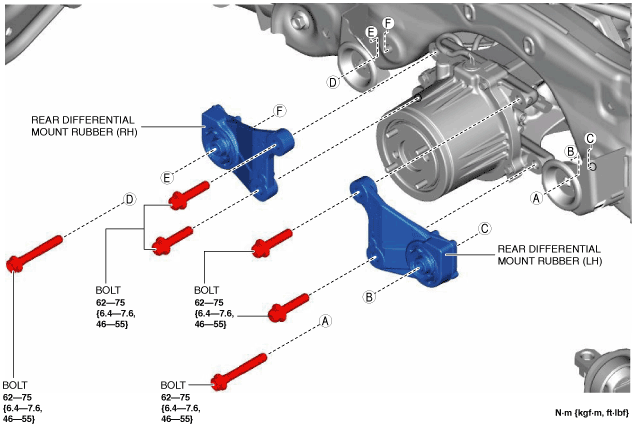

4.  Remove the rear differential mount rubber.

ac9uuw00008079

5.  Install in the reverse order of removal. (See Rear Differential Mount Rubber, Bolt Installation Note.)

Rear Differential Mount Rubber, Bolt Installation Note

1.  Align the alignment marks on the rear crossmember and rear differential mount rubber, and install the rear differential mount rubber.

ac9uuw00008078

Note

•  When newly replacing the rear differential mount rubber, place alignment marks on the new part in the same positions as the removed rear differential mount rubber.

ac9uuw00008080

2.  Temporarily tighten bolts A and B.

ac9uuw00008081

3.  Remove the transmission jack.

4.  Shake the rear differential forward and back/left and right to improve the installation fit of the rear differential.

5.  Completely tighten bolts in the order of A and B.
