VERIFY ALL SYSTEM DTCs
• Switch the ignition OFF.
• Switch the ignition ON (engine off or on) and wait for 10 s or more.
• Perform a CMDTC self-test using the M-MDS.
• Are any DTCs other than DTC U300A:62 displayed?
|
Yes
|
If a procedure which verifies other DTCs is included in the diagnostic procedure of the displayed DTC:
• Go to the next step.
If a procedure which verifies other DTCs is not included in the diagnostic procedure of the displayed DTC:
• Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
|
|
No
|
Go to the next step.
|
|
2
|
INSPECT ELECTRIC PARKING BRAKE CONTROL MODULE CONNECTOR CONDITION
• Switch the ignition OFF.
• Disconnect the negative battery terminal.
• Disconnect the electric parking brake control module connector.
• Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the connector, then go to Step 4.
|
|
3
|
VERIFY ELECTRIC PARKING BRAKE CONTROL MODULE POWER SUPPLY (IG1) VOLTAGE
• Connect the negative battery terminal.
• Switch the ignition ON (engine off or on).
• Measure the voltage at the electric parking brake control module terminal 1AB (wiring harness-side).
• Is the voltage B+?
|
Yes
|
Go to the next step.
|
|
No
|
Inspect the C/U IG1 15 A fuse.
• If the fuse is blown:
-

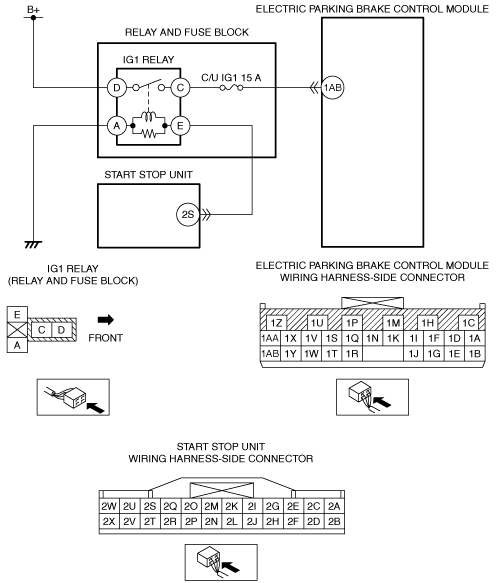

? Refer to the wiring diagram and verify whether or not there is a common connector between IG1 relay terminal C and electric parking brake control module terminal 1AB.
If there is a common connector:
-
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.
• Repair or replace the malfunctioning part.
If there is no common connector:
-
• Repair or replace the wiring harness which has a short to ground.
• Replace the fuse.
• If the fuse is damaged:
-
? Replace the fuse.
• If the fuse is normal:
-
? Refer to the wiring diagram and verify whether or not there is a common connector between IG1 relay terminal C and electric parking brake control module terminal 1AB.
If there is a common connector:
-
• Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.
• Repair or replace the malfunctioning part.
If there is no common connector:
-
• Repair or replace the wiring harness which has an open circuit.
Go to the next step.
|
|
4
|
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
• Always reconnect all disconnected connectors.
• Connect the negative battery terminal.
• Clear the DTC for the electric parking brake control module using the M-MDS.
• Perform the following procedure 3 times or more.
-
? Pull up the electric parking brake switch to operate the electric parking brake.
? Press down the electric parking brake switch to release the electric parking brake.
• Retrieve the electric parking brake control module DTCs using the M-MDS.
• Is the same DTC displayed?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the electric parking brake control module.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
5
|
VERIFY IF OTHER DTCs DISPLAYED
• Are any other DTCs displayed?
|
Yes
|
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
|
|
No
|
DTC troubleshooting completed.
|
