REAR BRAKE (DISC) REMOVAL/INSTALLATION

id041100800500

Caution

• Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

Note

• When in maintenance mode, the clearance between the disc pad and the disc plate expands.

• When the maintenance mode is completed, perform the electric parking brake automatic adjustment.

• With the electric parking brake automatic adjustment, the electric parking brake motor gear unit operation time is longer than normal.

• To remove/install the following parts, set aside the brake caliper with the brake hose connected and suspend it using a cable.

? Disc plate

? Mounting support

1. Switch to the maintenance mode. (See MAINTENANCE MODE.)

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

4. Disconnect the brake hose from the caliper. (See BRAKE HOSE (REAR) REMOVAL/INSTALLATION.)

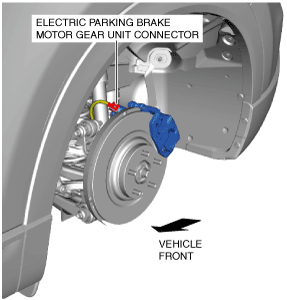

5. Disconnect the electric parking brake motor gear unit connector.

ac9uuw00008924

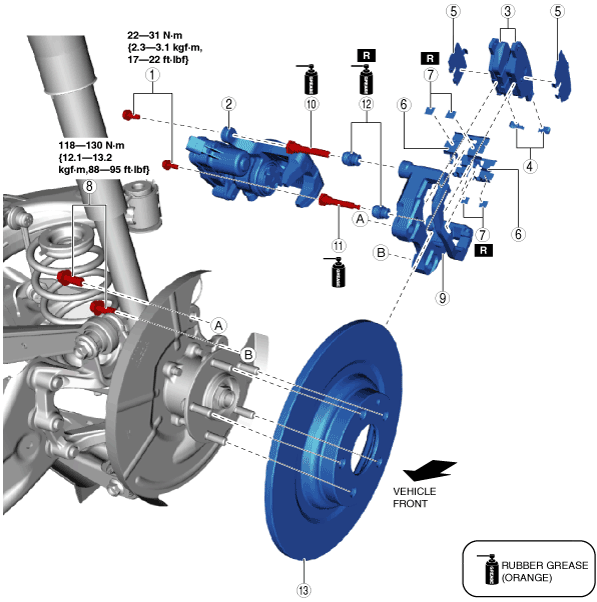

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

8. End the maintenance mode. (See MAINTENANCE MODE.)

9. After installation, pump the brake pedal a few times and inspect the following:

? Disc pad projection does not contact piston and caliper

? Brake drag

ac9uuw00009544

1	Bolt
2	Caliper^*1 (See Caliper Installation Note.)
3	Disc pad
4	Wear indicator
5	Shim
6	Guide plate
7	Tape
8	Bolt
9	Mounting support
10	Bolt (main)
11	Bolt (sub)
12	Dust boot
13	Disc plate

*1 :When removing/installing a caliper, disconnect/connect the brake hose.

Caliper Installation Note

1. Clean the exposed area of the piston.

2. Press in the piston using a commercially available disc brake expander tool.

Caution

• When pressing the piston into the caliper, the caliper internal parts could be damaged while rotating and pressing the piston. Be careful not to rotate the piston when pressing the piston into the caliper.

am6xuw00008538

3. Install the caliper.
