CALIPER (REAR) DISASSEMBLY/ASSEMBLY

id041100800600

Caution

•  Brake fluid will damage painted surfaces. Be careful not to spill any on painted surfaces. In addition, if there is any brake fluid on the wiring harness, the wire insulation may corrode causing a malfunction such as a short circuit. If brake fluid gets on a painted surface or wiring harness, wash and flush it off completely with water immediately.

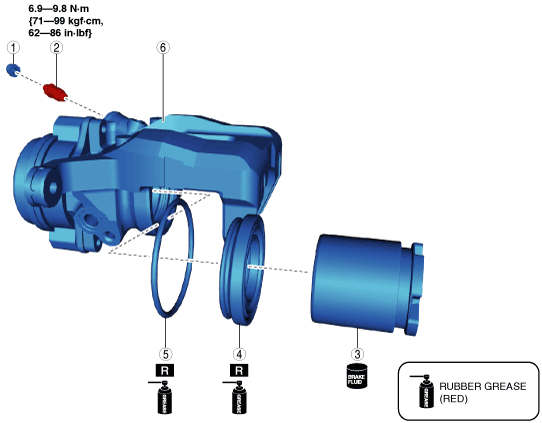

1.  Disassemble in the order indicated in the table.

ac9uuw00009542

2.  Assemble in the reverse order of removal.

Piston Disassembly Note

Warning

•  When compressed air is blown into the caliper body, injury to a finger or other part from pinching could result from the piston springing up. When blowing in compressed air, do not place your fingers between the piston and caliper body when performing the work.

Caution

•  The piston could be damaged if blown out with great force. Blow the compressed air slowly to prevent the piston from suddenly popping out.

1.  Insert a piece of wood in the caliper as shown in the figure and blow compressed air through the hole to remove the piston from the caliper body.

am6xuw00007834

Caution

•  If the piston is removed from the caliper while rotating the piston, the caliper internal parts could be damaged. Be careful not to rotate the piston when removing the piston from the caliper.

Dust Seal, Piston Assembly Note

1.  Assemble the dust seal to the piston.

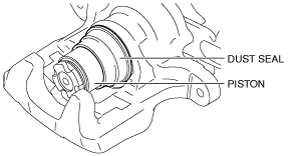

2.  Assemble the lip of the dust seal to the groove of the caliper body with the dust seal is assembled to the piston as shown in the figure.

ac5uuw00003954

3.  Align the head of the spindle nut with the inner shape of the piston and press the piston into the caliper body completely.

Caution

•  If the piston is pushed into the caliper while rotating the piston, the caliper internal parts could be damaged. Be careful not to rotate the piston when pushing the piston into the caliper.

4.  Verify that the dust seal is installed into the caliper body groove.
