ELECTRIC PARKING BRAKE SWITCH INSPECTION

id041200523300

Continuity Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

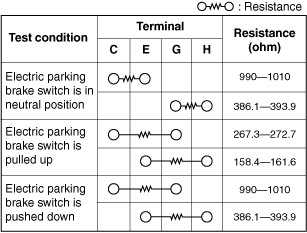

3.  Verify that the resistance and continuity is as indicated in the table.

ac5uuw00004013

ac9wzw00004664

ac9wzw00004943

•  If not as indicated in the table, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

Illumination Light Inspection

Note

•  The illumination light is built into the electric parking brake switch. If there is any malfunction, replace the electric parking brake switch.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

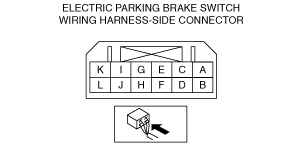

3.  Apply battery positive voltage to electric parking brake switch terminal I, and connect terminal J to ground.

ac5uuw00004013

4.  Verify that the illumination light turns on.

ac5uuw00003931

•  If there is any malfunction, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

Indicator Light Inspection

Note

•  The indicator light is built into the electric parking brake switch. If there is any malfunction, replace the electric parking brake switch.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage to electric parking brake switch terminal K, and connect terminal L to ground.

ac5uuw00004013

4.  Verify that the indicator light turns on.

ac5uuw00003932

•  If there is any malfunction, replace the electric parking brake switch. (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.)
