FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION

id041500800300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

5.  After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

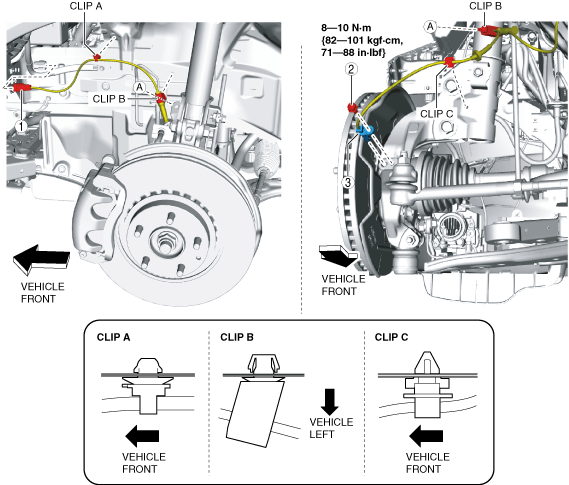

ac9wzw00005537

1
Connector
(See Connector Disconnection Note.)
2
Bolt
3
Front ABS wheel-speed sensor
(See Front ABS Wheel-speed Sensor Wiring Harness and Clip Disconnection Note.)

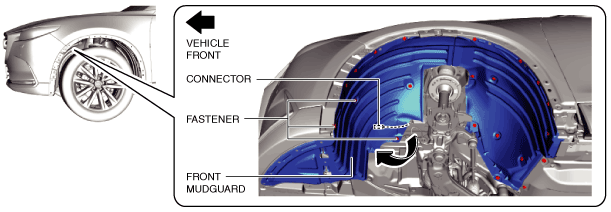

Connector Disconnection Note

1.  Remove the fasteners.

ac9uuw00009699

2.  Peel back the front mudguard and disconnect the connector.


Front ABS Wheel-speed Sensor Wiring Harness and Clip Disconnection Note

Note
•  Refer to this note only if the disconnection of the front ABS wheel-speed sensor wiring harness and the clip shown in the figure is required.
ac9uuw00009540

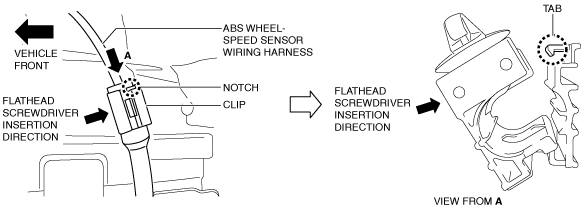

1.  Insert a flathead screwdriver from the side where there is no notch as shown in the figure.

ac9uuw00009232

2.  Detach the tab as shown in the figure and disconnect the ABS wheel-speed sensor wiring harness and clip.
