OFF-ROAD TRACTION ASSIST SWITCH INSPECTION [WITH OFF-ROAD TRACTION ASSIST]

id0415008039f2


Switch Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the OFF-ROAD TRACTION ASSIST switch. (See OFF-ROAD TRACTION ASSIST SWITCH REMOVAL/INSTALLATION [WITH OFF-ROAD TRACTION ASSIST].)

3.  Verify that the resistance between the OFF-ROAD TRACTION ASSIST switch terminals D and E is as indicated in the table.

•  If not as indicated in the table, replace the OFF-ROAD TRACTION ASSIST switch. (See OFF-ROAD TRACTION ASSIST SWITCH REMOVAL/INSTALLATION [WITH OFF-ROAD TRACTION ASSIST].)

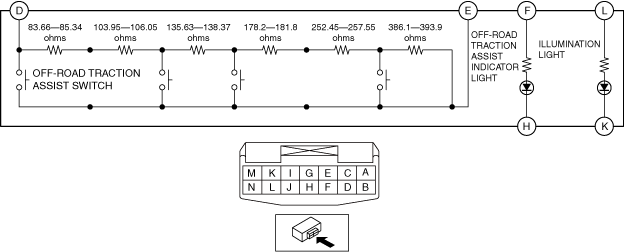

ac9uuw00011032

OFF-ROAD TRACTION ASSIST switch specification

Terminal

Test condition

Resistance (ohms)
D—E
OFF-ROAD TRACTION ASSIST switch pressed
0
OFF-ROAD TRACTION ASSIST switch released
1139.99—1163.01


Illumination Light Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Apply battery voltage to OFF-ROAD TRACTION ASSIST switch terminal L, and connect terminal K to ground.

3.  Verify that the LED illuminates.

•  If there is any malfunction, replace the OFF-ROAD TRACTION ASSIST switch. (See OFF-ROAD TRACTION ASSIST SWITCH REMOVAL/INSTALLATION [WITH OFF-ROAD TRACTION ASSIST].)


Indicator Light Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Apply battery voltage to OFF-ROAD TRACTION ASSIST switch terminal F, and connect terminal H to ground.

3.  Verify that the LED illuminates.

•  If there is any malfunction, replace the OFF-ROAD TRACTION ASSIST switch. (See OFF-ROAD TRACTION ASSIST SWITCH REMOVAL/INSTALLATION [WITH OFF-ROAD TRACTION ASSIST].)
