TIE-ROD END REPLACEMENT

id061300801200

Special Service Tool (SST)

49 T028 3A0   Ball joint puller set

1.  Remove the snap pin from the tie-rod end.

ac9uuw00006199

2.  Loosen the locknut of the tie-rod end.

ac9uuw00006200

3.  Using the SST, disconnect the steering knuckle and tie-rod end.

ac9uuw00006201

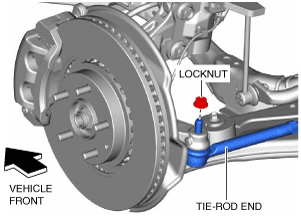

4.  Remove the locknut from the tie-rod end.

ac9uuw00006202

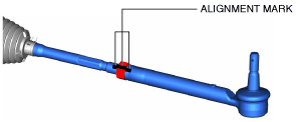

5.  Place alignment marks as shown in the figure for proper installation.

ac9uuw00006203

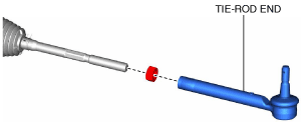

6.  Remove the tie-rod end.

ac9uuw00006204

7.  Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

ac9uuw00006205

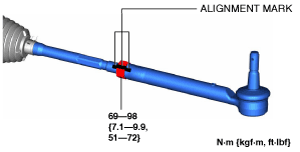

8.  Align the marks that were made before removing the tie-rod end, and assemble the tie-rod end to the tie rod.

ac9uuw00006206

9.  Verify that dimension A shown in the figure is within the specification.

ac9uuw00006207

•  If not within the specification, make adjustments so that dimension A is within the specification.

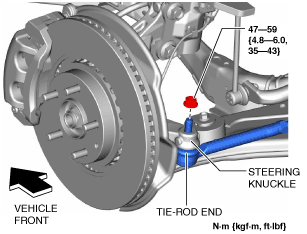

10.  Install the tie-rod end to the steering knuckle.

ac9uuw00006208

11.  Install a new snap pin to the tie-rod end.

ac9uuw00006209

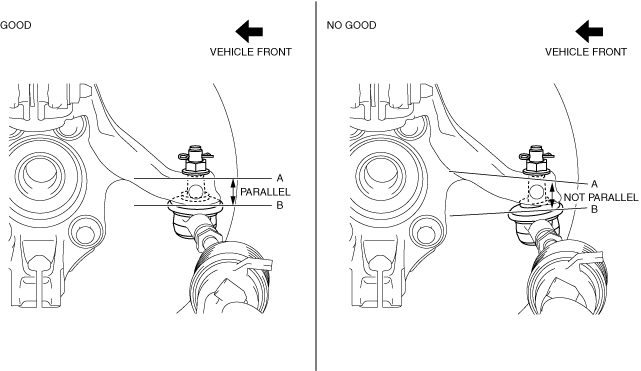

12.  Verify that A and B shown in the figure are parallel while the vehicle is on the ground.

ac30zw00001988

Caution

•  Install the tie-rod end to the correct position. Otherwise, it could cause cracks on the tie-rod end boot.

•  If the installation position is not correct, perform the adjustment using the following procedure.

1.  Adjust the tie-rod end by rotating it so that it is at the correct position.

ac9wzw00005539

13.  After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)
