• There are two types of front climate control unit, type A and type B.
ac9wzw00005473
|
HVAC SYSTEM WIRING DIAGRAM [CLIMATE CONTROL SYSTEM]
id0703k2800100
ac9wzw00005473
|
Front

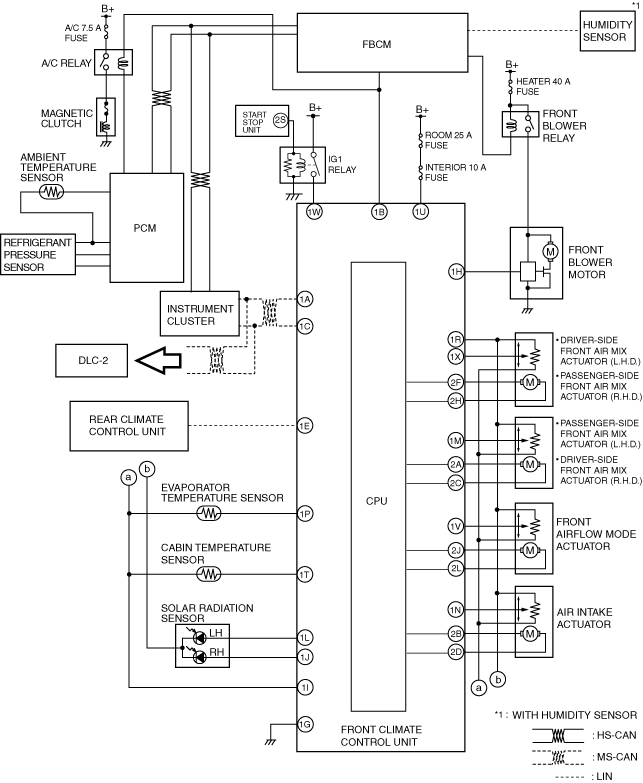

Front climate control unit type A
ac9wzn00001110
|
ac9uuw00008207
|

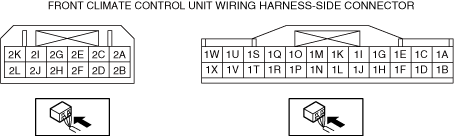

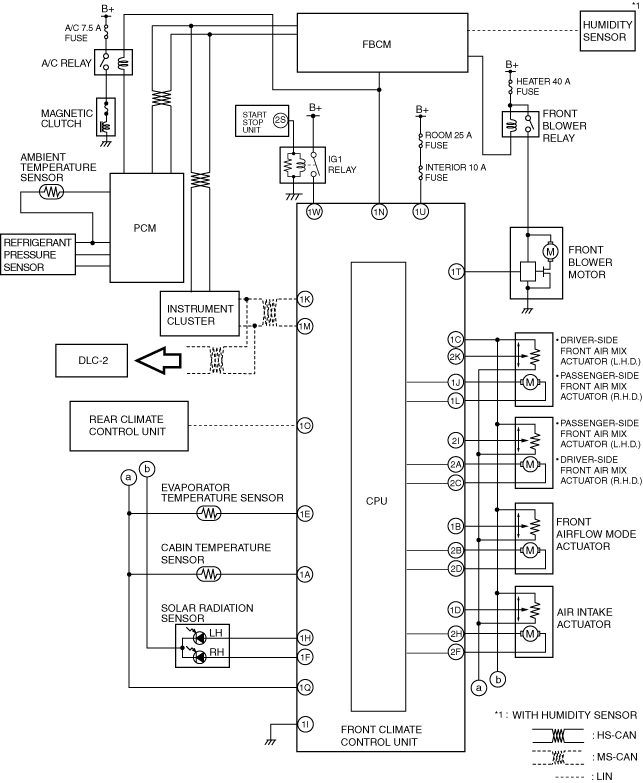

Front climate control unit type B
ac9wzn00001936
|
ac9uuw00008207
|

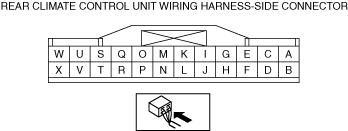

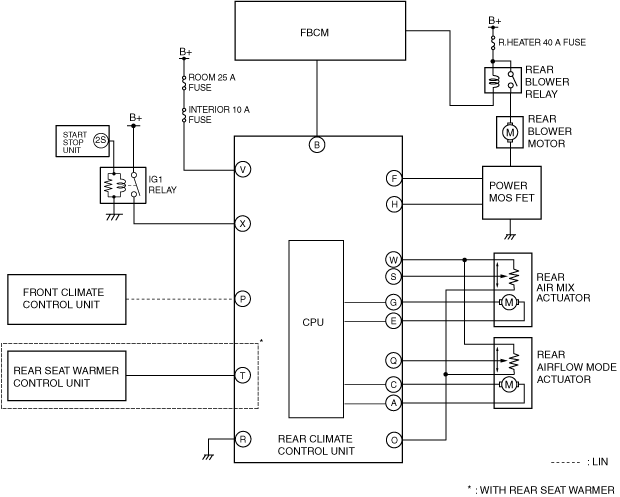

Rear
ac9wzn00001742
|
ac9uuw00008208
|
