MANIFOLD GAUGE SET CONNECTION

id071000299400

1.  Fully close the valves of the manifold gauge.

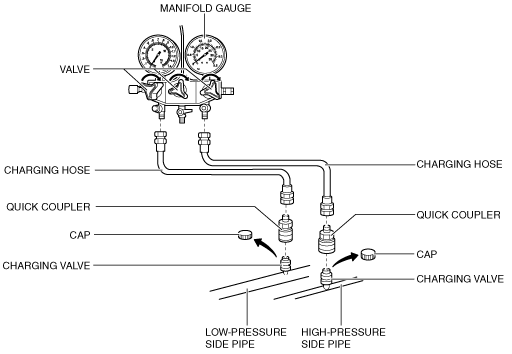

amxuuw00003820

2.  Connect the charging hoses to the high- and low-pressure side joints of the manifold gauge.

3.  Connect the quick couplers to the ends of the charging hoses.

4.  Connect the quick couplers to the charging valves.
