BLOWER UNIT DISASSEMBLY/ASSEMBLY

id071100800600


L.H.D.

Caution
•  Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1.  Disassemble in the order indicated in the table.

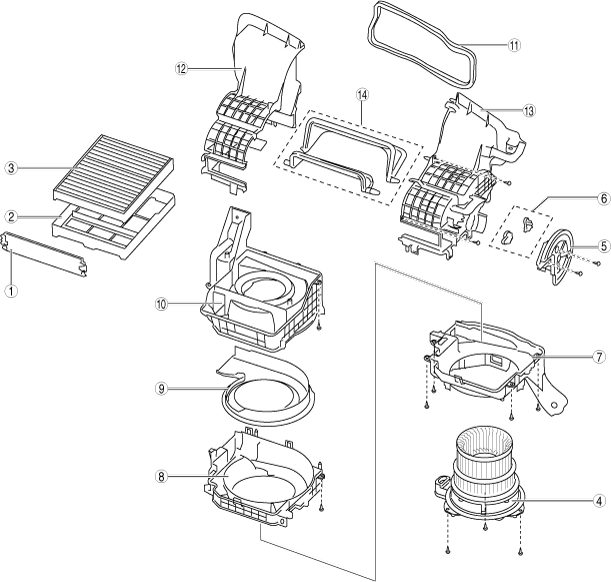

ac9wzw00003578

1
Cover
2
Air filter case
3
Air filter
4
Front blower motor
5
Air intake actuator
6
Air intake link
7
Blower case F
8
Blower case E
9
Blower case D
10
Blower case C
11
Adhesive polyurethane
12
Blower case B
13
Blower case A
14
Air intake door

2.  Assemble in the reverse order of disassembly.


R.H.D.

Caution
•  Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.

1.  Disassemble in the order indicated in the table.

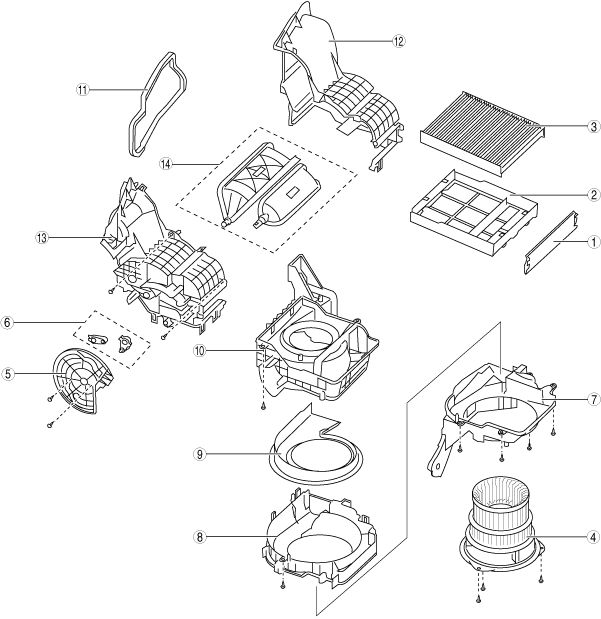

ac9wzw00003579

1
Cover
2
Air filter case
3
Air filter
4
Front blower motor
5
Air intake actuator
6
Air intake link
7
Blower case F
8
Blower case E
9
Blower case D
10
Blower case C
11
Adhesive polyurethane
12
Blower case B
13
Blower case A
14
Air intake door

2.  Assemble in the reverse order of disassembly.
