REAR A/C UNIT DISASSEMBLY/ASSEMBLY

id071100801900

Caution
•  If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

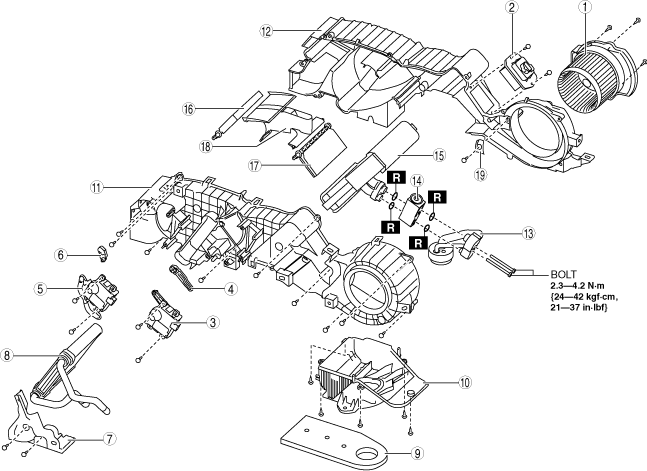

1.  Disassemble in the order indicated in the table.

ac9wzw00004112

X: Applicable
-: Not applicable

Step

Part name

Disassembly/assembly of main parts

Rear heater core

Rear evaporator

Rear expansion valve
1
Rear blower motor
-
-
-
2
Power MOS FET
-
-
-
3
Rear air mix actuator
-
-
-
4
Rear air mix link
-
-
-
5
Rear airflow mode actuator
-
-
-
6
Rear airflow mode link
-
-
-
7
Cover
X
X
X
8
Rear heater core
X
X
X
9
Polyurethane foam
X
X
X
10
Rear A/C case D
-
X
X
11
Rear A/C case C
-
X
X
12
Rear A/C case B
-
X
X
13
Rear evaporator pipe
-
X
X
14
Rear expansion valve
-
X
X
15
Rear evaporator
-
X
X
16
Airflow mode door
-
-
-
17
Air mix door
-
-
-
18
Rear A/C case A
-
-
-
19
Plate
-
-
-

2.  Assemble in the reverse order of disassembly.
