INSPECTION OF SST (DEPLOYMENT TOOL)

id081000801000

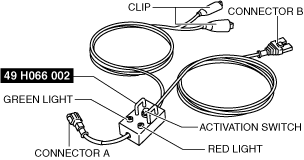

Special Service Tool (SST)

49 H066 002

Deployment tool

1.  Before using the SST (49 H066 002), inspect its operation.

ac9uuw00009108

Inspection Procedure

1.  Follow the steps below to inspect the SST (49 H066 002).

ac9uuw00009109
•  If not as indicated in the table, replace the SST (49 H066 002) because it has a malfunction.
Warning
•  Do not use a malfunctioning SST (49 H066 002), otherwise it could cause the air bag module or pre-tensioner seat belt to accidentally operate (deploy).
Caution
•  Because the permissible voltage for the SST (49 H066 002) is 12 V, do not connect a 24 V power source because it will damage the SST. Always connect only a 12 V power source.

Step

Inspection procedure

Light condition

Green

Red
1

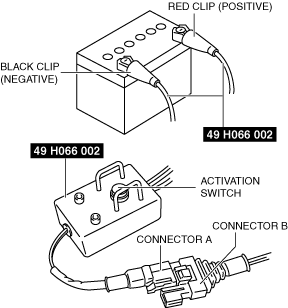

Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
On
Off
2
Connect connectors A and B.
Off
On
3
Press the activation switch.
On
Off
