DTC B1087:88 [FRONT BODY CONTROL MODULE (FBCM)]

id0902p2006700

Description

LIN communication error
Detection condition
•  LIN bus communication line malfunction detected for 1 s or more
Fail-safe
Not applicable
Possible cause
•  Malfunction in LIN bus communication line

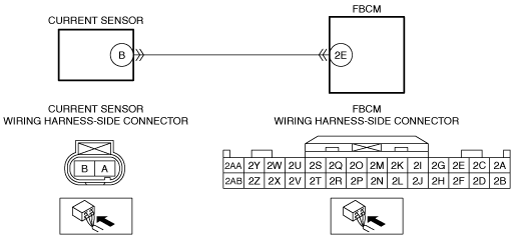

?  Current sensor terminal B—Front body control module (FBCM) terminal 2E
•  Front body control module (FBCM) malfunction

Diagnostic Procedure

Step

Inspection

Action
1
VERIFY FRONT BODY CONTROL MODULE (FBCM) DTCs AGAIN
•  Clear the DTC for the front body control module (FBCM) using the M-MDS.
•  Switch the ignition ON (engine off or on) and wait for 1 s or more.
•  Retrieve the front body control module (FBCM) DTCs using the M-MDS.
•  Is the same DTC displayed?
Yes
LIN communication line can be considered the cause.
•  Refer to the wiring diagram and verify whether or not there is a common connector between current sensor terminal B and front body control module (FBCM) terminal 2E.
If there is a common connector:
?  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a malfunction.
?  Repair or replace the malfunctioning part.
If there is no common connector:
?  Repair or replace the wiring harness.
Go to the next step.
No
Go to Step 3.
2
VERIFY THAT REPAIRS HAVE BEEN COMPLETED
•  Clear the DTC for the front body control module (FBCM) using the M-MDS.
•  Switch the ignition ON (engine off or on) and wait for 1 s or more.
•  Retrieve the front body control module (FBCM) DTCs using the M-MDS.
•  Is the same DTC displayed?
Yes
Replace the front body control module (FBCM), then go to the next step.
(See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION.)
No
Go to the next step.
3
VERIFY IF OTHER DTCs DISPLAYED
•  Are any other DTCs displayed?
Yes
Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.
(See DTC TABLE [FRONT BODY CONTROL MODULE (FBCM)].)
No
DTC troubleshooting completed.
