FOREWORD [PARKING ASSIST UNIT]

id0902q6240000

Special Service Tool (SST)

49US 15 1A0

PROBE KIT

•  If there is any vehicle malfunction complaint lodged by a customer, perform malfunction diagnosis according to the troubleshooting procedure. (See Troubleshooting Procedure.)

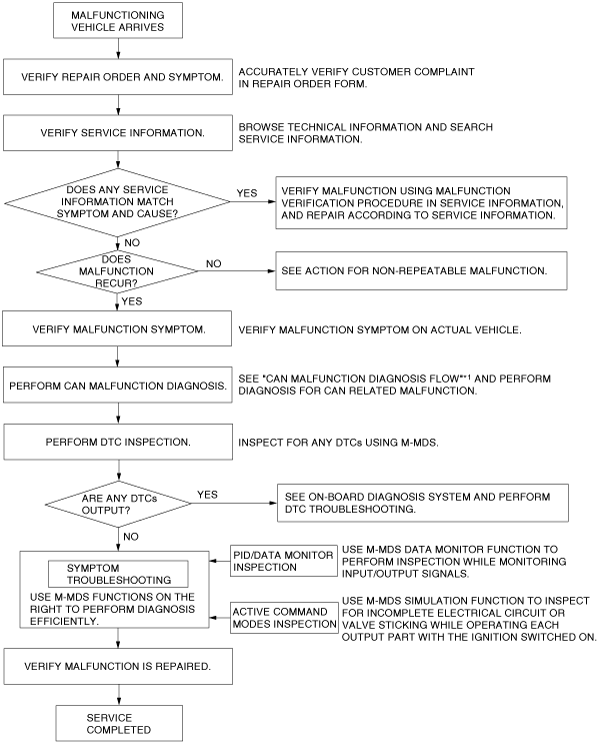

Troubleshooting Procedure

am3zzw00014383
*1   :(See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [L.H.D.].) (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [R.H.D.].)

Action for Non-repeatable Malfunction

•  If the malfunction does not recur, verify the malfunction cause by performing the following actions:
?  Verify that a DTC has been recorded in the memory. (See DTC INSPECTION [PARKING ASSIST UNIT].)
?  Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.
?  Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for malfunction or occurrence of any DTCs.
aaxjjw00007274
?  Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection. (See ELECTRICAL SYSTEM.)
Note
•  SST (Reference): PROBE KIT (49US 15 1A0)
am6zzw00016929
