SYSTEM WIRING DIAGRAM [ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY]] - MAZDA CX-9 TC 2016

SYSTEM WIRING DIAGRAM [ENTERTAINMENT SYSTEM [WITH CENTER DISPLAY]]

id0903l8059900

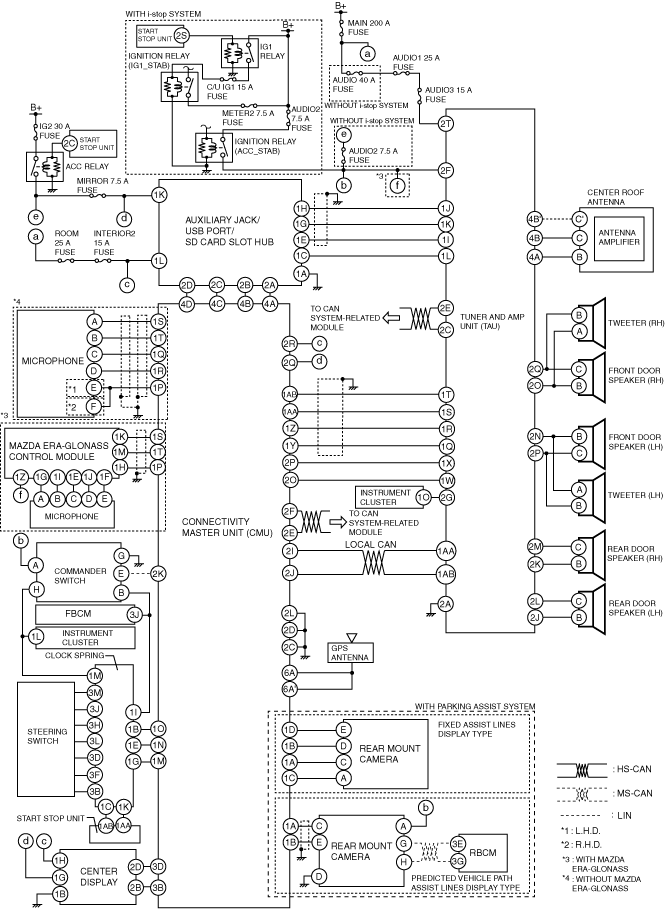

Without Bose^®

ac9wzw00005214

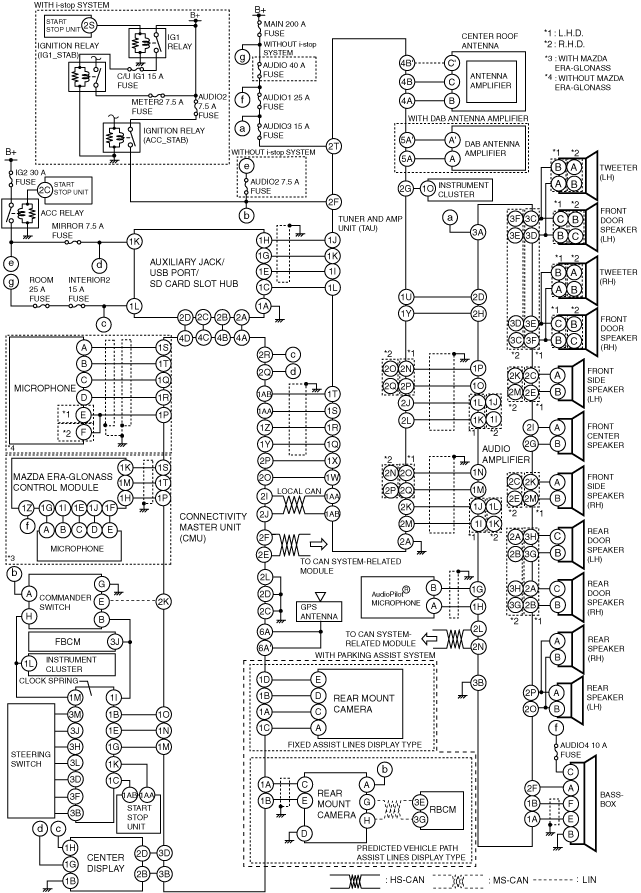

With Bose^®

ac9wzw00005215
