REAR BUMPER STAY REMOVAL/INSTALLATION

id091000030000

Without Rear Fog Light

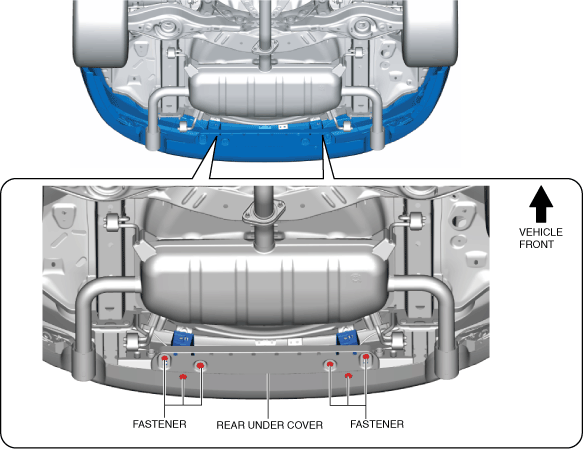

1.  Remove the fasteners.

ac9wzw00004473

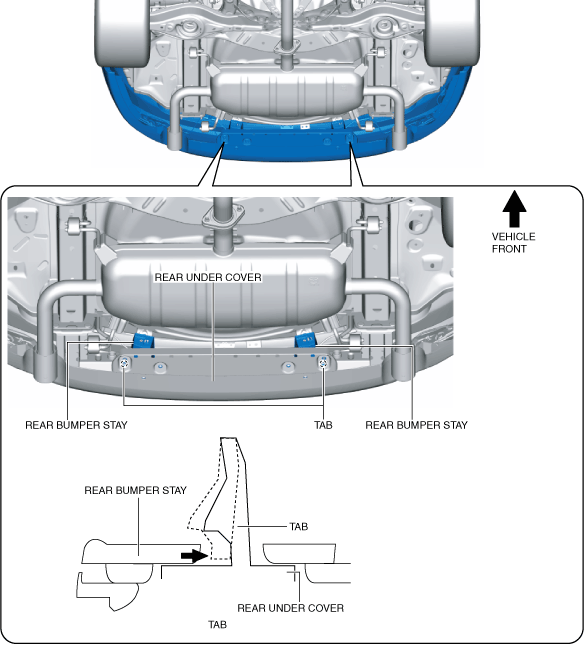

2.  Move the rear under cover tabs in the direction of the arrow shown in the figure and remove the rear under cover.

ac9wzw00004835

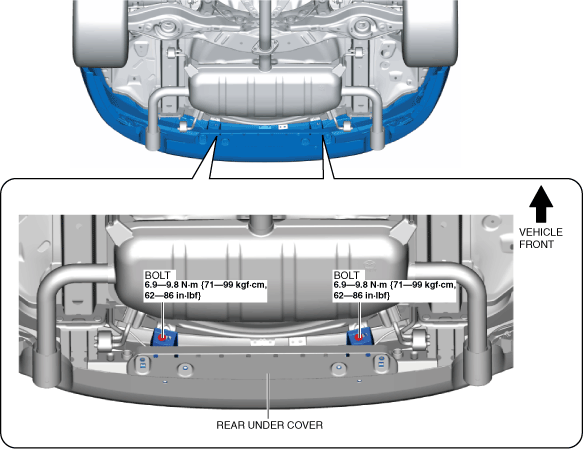

3.  Remove the bolts.

ac9wzw00004474

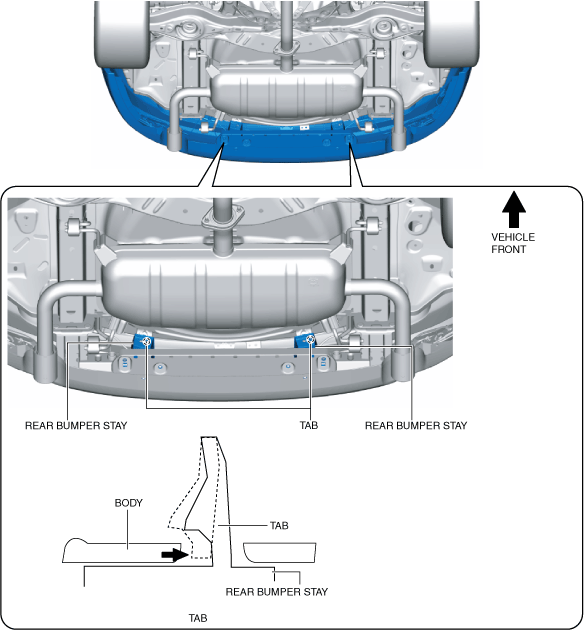

4.  Remove the tabs shown in the figure and detach the rear bumper stay from the body.

ac9wzw00005604

5.  Install in the reverse order of removal.

With Rear Fog Light

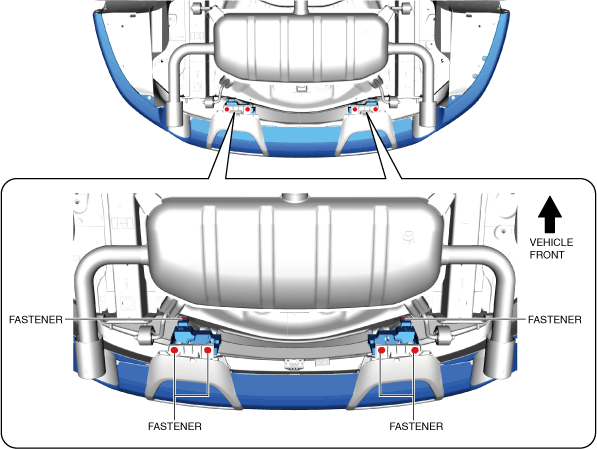

1.  Remove the fasteners.

ac9wzw00003887

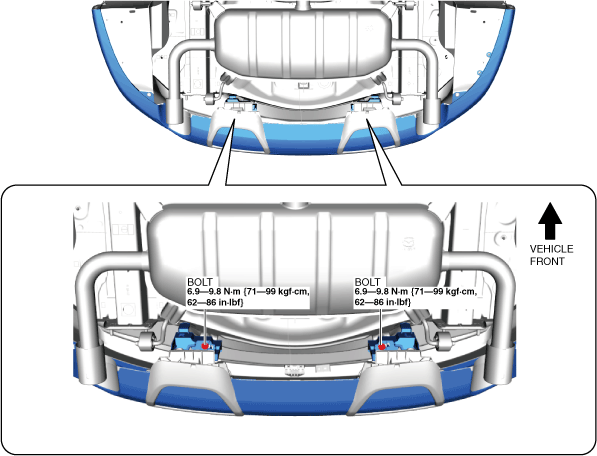

2.  Remove the bolts.

ac9wzw00004475

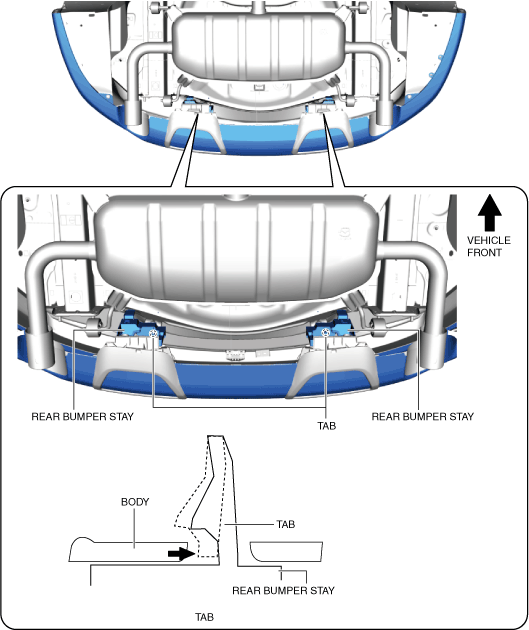

3.  Remove the tabs shown in the figure and detach the rear bumper stay from the body.

ac9wzw00003888

4.  Install in the reverse order of removal.
