BONNET DISASSEMBLY/ASSEMBLY

id091000899800

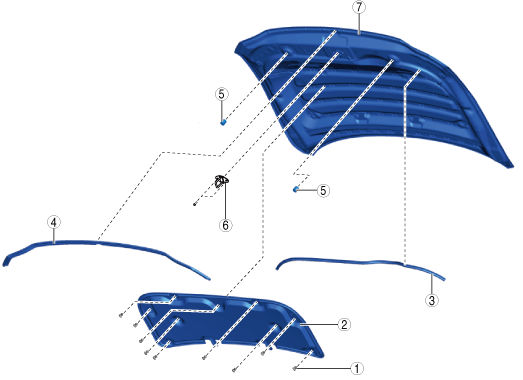

1. Disassemble in the order indicated in the table.

ac9uuw00008754

1	Fastener
2	Bonnet insulator (See Bonnet Insulator Installation Note.)
3	Shroud seal weatherstrip
4	Parting seal weatherstrip
5	Stop rubber
6	Bonnet striker (See BONNET STRIKER REMOVAL/INSTALLATION.)
7	Bonnet

2. Assemble in the reverse order of disassembly.

Bonnet Insulator Installation Note

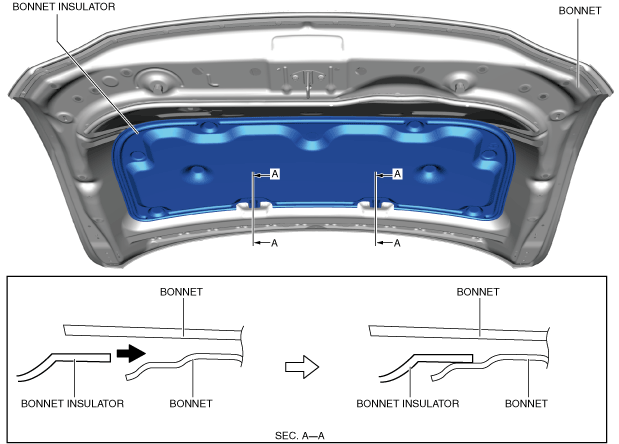

1. Move the bonnet insulator in the direction of the arrow shown in the figure and insert it into the inner side of the bonnet.

ac9wzw00003946

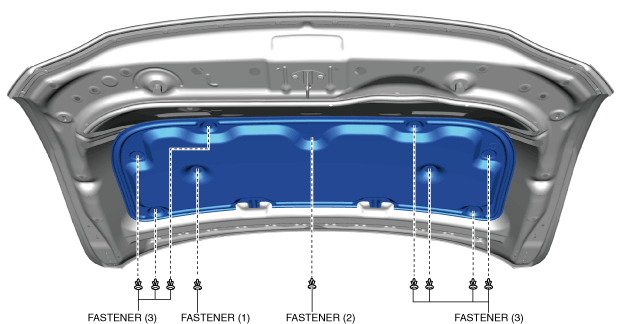

2. Install the bonnet insulator fasteners in the order shown in the figure.

ac9wzw00003947
