OUTER MIRROR GLASS INSPECTION

id091200010400

Heated Outer Mirror

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.)(See OUTER MIRROR GLASS INSTALLATION.)

3.  Verify that the resistance and continuity between the heated outer mirror terminals is as indicated in the table.

ac5wzw00002988

•  If not as indicated in the table, or if the resistance is not within the specification, replace the outer mirror glass.

ac9uuw00009411

Blind spot monitoring (BSM) warning indicator light

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3.  Prepare four dry cell batteries (1.5 V).

am3zzw00021030

4.  Connect the four dry cell batteries.

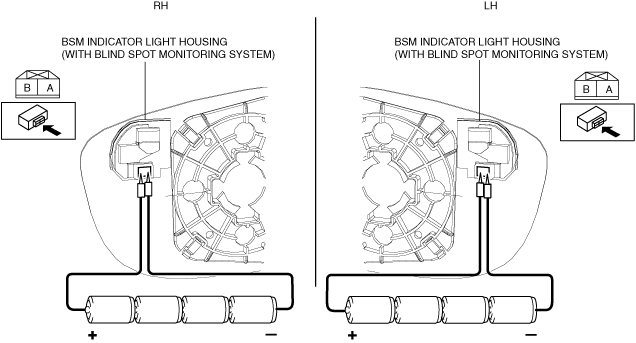

5.  Connect the positive pole of the dry cell battery to outer mirror glass terminal B, and the negative pole to terminal A.

am3zzw00021029

•  If the BSM indicator light does not illuminate, replace the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)
