SENSOR COVER REMOVAL/INSTALLATION

id091200025000

Note

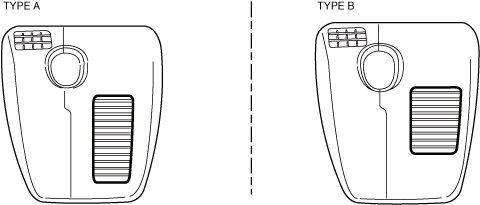

•  There are two types of the sensor cover. Verify the sensor cover shape before performing the procedures.

ac9uuw00006274

Type A

1.  Pull the sensor cover A in the direction of the arrow shown in the figure and detach tab A of sensor cover A and sensor cover B.

ac9uuw00006275

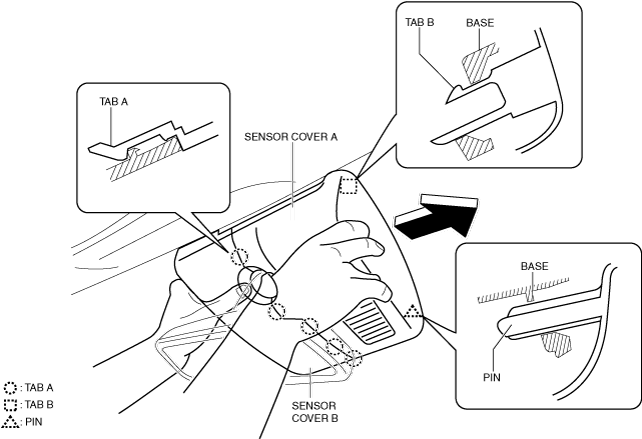

2.  Pull the sensor cover A in the direction of the arrow shown in the figure, detach the tab B and pin for sensor cover A and the base, and remove the sensor cover A from the base.

3.  Remove the wiring harness from the hook.

ac9uuw00006276

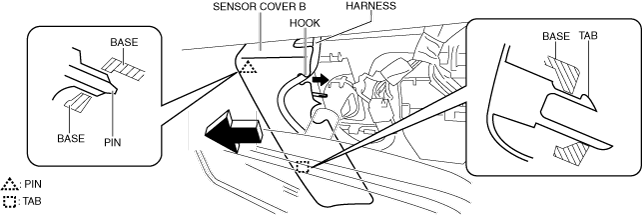

4.  Pull the sensor cover B in the direction of the arrow shown in the figure, detach the tab and pin for sensor cover B and the base, and remove the sensor cover B from the base.

5.  Install in the reverse order of removal.

Type B

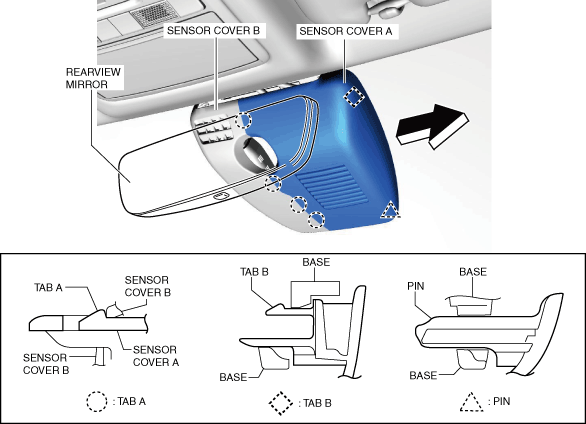

1.  Pull sensor cover A in the direction of the arrow shown in the figure, detach tabs A, B and pin, and remove sensor cover A from the base.

ac9uuw00006277

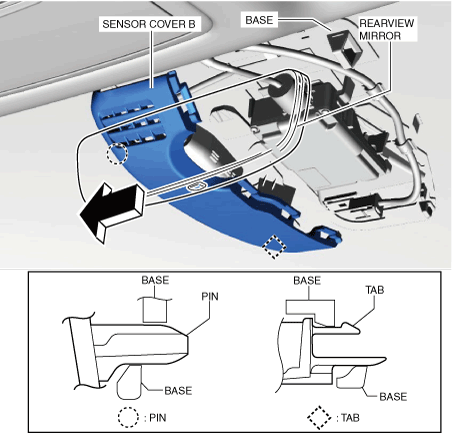

2.  Pull sensor cover B in the direction of the arrow shown in the figure, detach the pin and tab, and remove sensor cover B from the base.

ac9wzw00005483

3.  Install in the reverse order of removal.
