SECOND-ROW SEAT REMOVAL/INSTALLATION
id091300425600
-
Warning
-
• If the sliding mechanisms on both sides are not locked after assembling the second-row seat, it may move unexpectedly while the vehicle is driven, which could result in serious injury. After assembling the second-row seat, try moving it back and forth to verify that the sliding mechanism on both sides are locked.
-
Caution
-
• After the second-row seat has been removed, if the slider lever is operated and the second-row seat is reinstalled with the left/right slide positions deviated, the adjuster unit could be damaged. After removing a second-row seat, do not operate the slider lever.
• Verify that there are no malfunctions in the forward/back slide of the seat and in the adjuster unit after installing a second-row seat.
• When performing the procedure with a second-row seat removed from the vehicle, perform the procedure on a clean cloth so as not to damage or soil the seat.
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

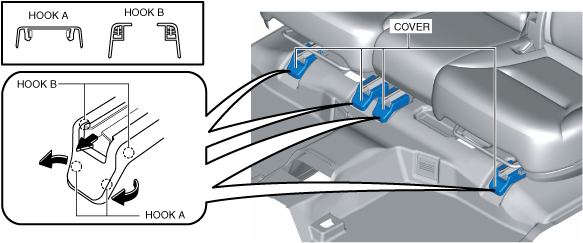

2. Detach hook A and B, remove the covers.
3. Remove the bolts.

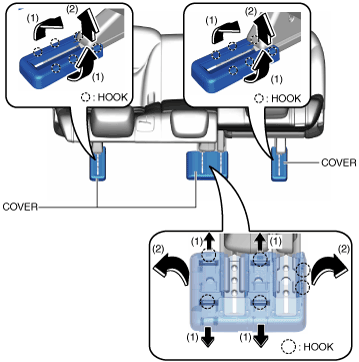

4. Move the cover in the direction of arrows (1) and (2), detach the hooks and remove the cover.
5. Remove the bolts.

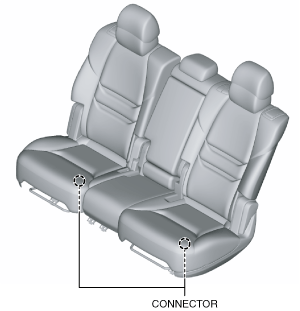

6. Disconnect the connector.
7. Take the second-row seat out.
8. Install in the reverse order of removal.
