RECLINER MOTOR INSPECTION

id091300801000

Warning

• Handling a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1. Disconnect the negative battery terminal and wait for 1 min. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Slide hook A in the order of arrows (1), (2), (3) shown in the figure and disconnect them from hook B.

ac5uuw00002045

3. Open fasteners C.

ac5uuw00002046

4. Disconnect the recliner motor connector.

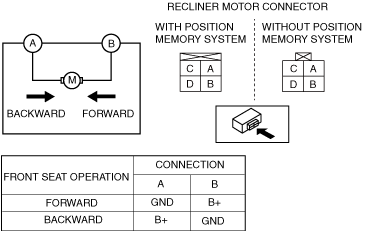

5. Apply battery positive voltage to the front seat back terminals and inspect the recliner motor operation.

ac9uuw00009414

• If not as specified, replace the front seat back component. (See FRONT SEAT BACK FRAME REMOVAL/INSTALLATION.) (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION.)
