POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION

id091300811100

Warning

•  Handling a front seat equipped with a side air bag improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings/cautions in the Workshop Manual before handling the front seat (side air bag integrated). (See AIR BAG SYSTEM SERVICE WARNINGS.) (See AIR BAG SYSTEM SERVICE CAUTIONS.)

1.  Switch the ignition OFF (LOCK).

2.  Disconnect the negative battery terminal and wait for 1 min. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

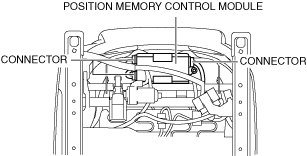

4.  Disconnect the position memory control module connector.

ac9wzw00005241

5.  Remove the screws.

am6zzw00012384

6.  Remove the position memory control module.

7.  Install in the reverse order of removal.
