THIRD-ROW SEAT CUSHION TRIM REMOVAL/INSTALLATION

id091300967100

Caution

•  When performing the procedure with a third-row seat cushion removed from the vehicle, perform the procedure on a clean cloth so as not to damage or dirty the seat.

•  If a C-ring is damaged while removing or installing the third-row seat back trim and third-row seat back pad, it may not be possible to install the third-row seat back trim and third-row seat back pad normally. When removing or installing the third-row seat back trim and third-row seat back pad, be careful not to damage the C-rings.

•  If a C-ring is damaged, replace it with a new one.

Removal

1.  Remove the third-row seat cushion.(See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

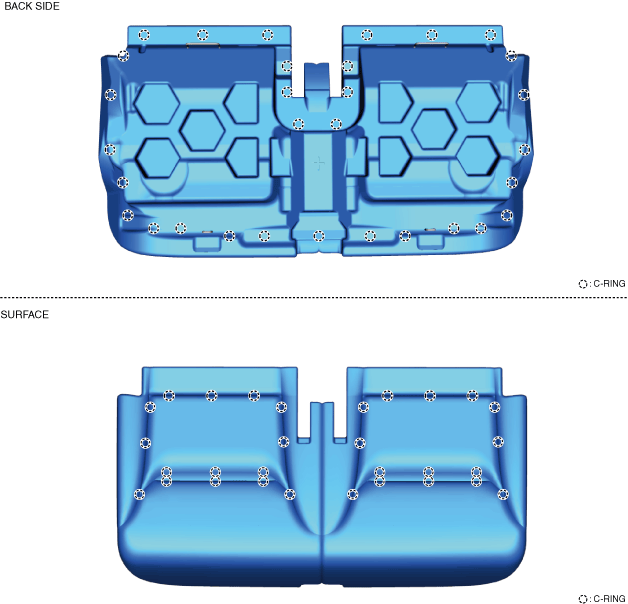

2.  Remove the C-rings.

ac9uuw00009867

3.  Remove the third-row seat cushion trim from the third-row seat cushion pad.

Installation

Note

•  The position and number of C-rings differ depending on the type of seat.

•  Wrinkling can be easily prevented by installing the C-rings with a certain amount of tightening.

ac9uuw00009808

1.  Align the third-row seat cushion trim with the installation hole of the third-row seat cushion pad, and install the C-rings.

ac9uuw00009868

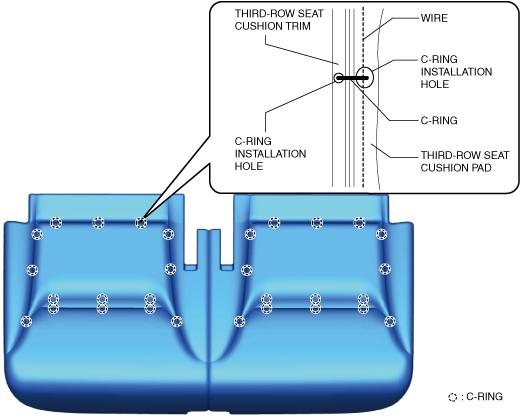

2.  Press the third-row seat back pad inward while pulling the third-row seat back trim outward.

ac9uuw00009809

3.  Align the third-row seat back trim with the shape of the third-row seat back pad while pressing the third-row seat back pad outward.

ac9uuw00009810

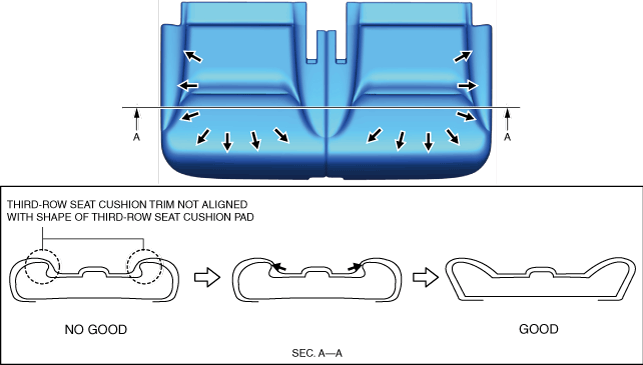

4.  Align the third-row seat cushion trim with the shape of the third-row seat cushion pad while pressing the third-row seat cushion pad outward.

ac9wzw00005223

5.  Install the third-row seat cushion.(See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
