SECOND-ROW SEAT BACK FRAME DISASSEMBLY/ASSEMBLY
id091300967800

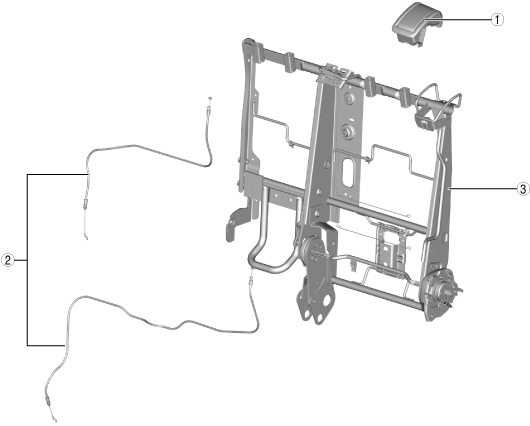

Driver-side Second-row Seat Back Frame
1. Disassemble in the order indicated in the table.
ac9uuw00009872
|
|
1
|
Walk in lever
|
|
2
|
Cable
|
|
3
|
Second-row seat back frame
|
2. Assemble in the reverse order of disassembly.

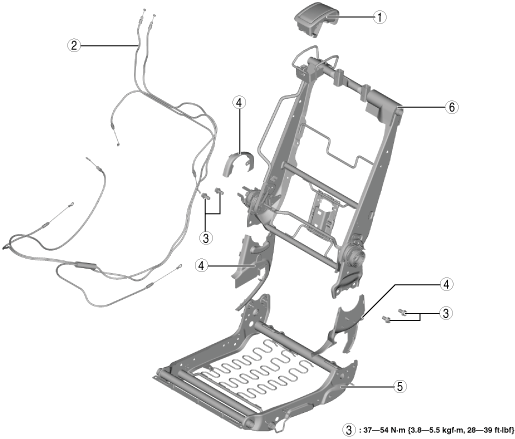

Passenger-side Second-row Seat Back Frame
1. Disassemble in the order indicated in the table.
ac9uuw00009873
|
|
1
|
Walk in lever
|
|
2
|
Cable
|
|
3
|
Bolt
|
|
4
|
Reverse cover
|
|
5
|
Second-row seat cushion frame
|
|
6
|
Second-row seat back frame
|
2. Assemble in the reverse order of disassembly.
