THEFT-DETERRENT SIREN REMOVAL/INSTALLATION

id091400630100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

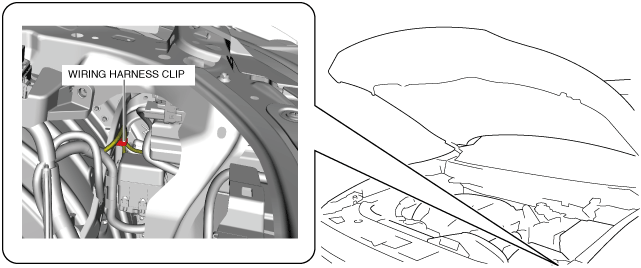

2.  Pull out the wiring harness clip.

ac9wzw00003763

3.  Remove the nut.

ac9wzw00003764

4.  Remove the relay box.

5.  Disconnect the connector.

ac9wzw00003765

6.  Remove the bolt.

ac9wzw00003766

7.  Remove the theft-deterrent siren.

8.  Disconnect the connector from the theft-deterrent siren.

ac9wzw00003767

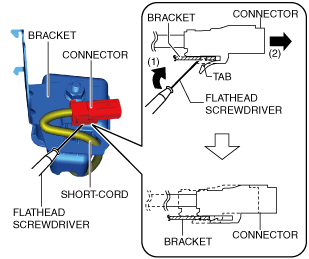

9.  Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the connector tab, and pull it in the direction of arrow (2) to detach the connector from the bracket.

ac9wzw00003768

10.  Remove the short-cord from the theft-deterrent siren.

11.  Remove the nut.

ac9wzw00003769

12.  Remove the theft-deterrent siren from the bracket.

13.  Install in the reverse order of removal.
