DEFLECTOR REMOVAL/INSTALLATION

id091500800400

1.  Fully open the glass panel.

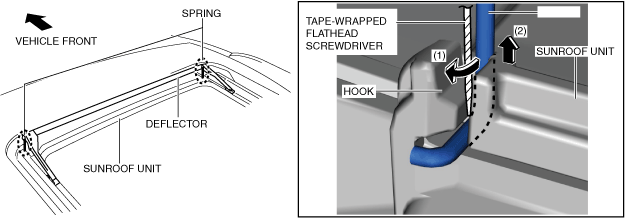

2.  Rotate a tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure and remove the spring in the direction of arrow (2) shown in the figure from the hooks.

Caution

•  If the spring is removed forcefully, the hooks located at the spring installation area may be damaged. Carefully remove the spring so as not to damage the hooks.

ac9wzw00004991

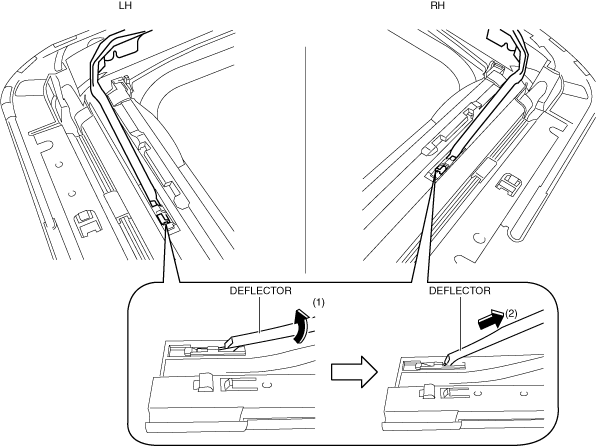

3.  Remove the deflector while lifting it up in the direction of arrow (1) shown in the figure and moving it in the direction of arrow (2).

ac9wzw00004992

4.  Install in the reverse order of removal.
