GLASS PANEL ADJUSTMENT

id091500800600

1. Fully close the glass panel.

2. Measure the gap and height between the glass panel and body.

3. Loosen the installation screws and adjust the glass panel.

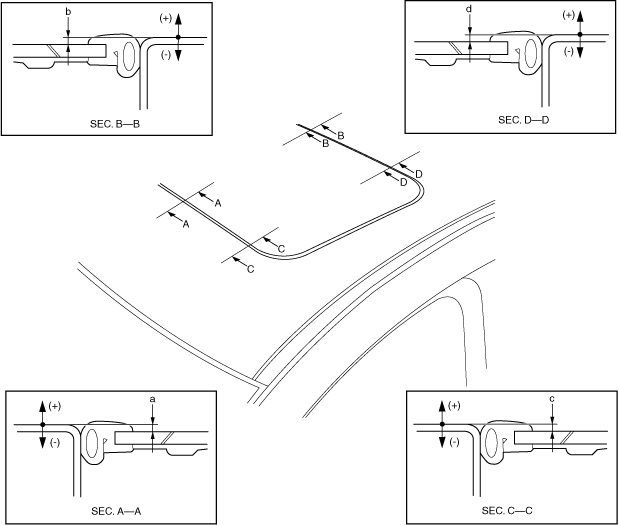

ac9wzw00004994

Standard clearance

a: –2.4—0.2 mm {–0.094—0.007 in}

b: –2.3—0.3 mm {–0.09—0.01 in}

c: –2.1—0.5 mm {–0.08—0.01 in}

d: –1.9—0.7 mm {–0.07—0.02 in}

4. Tighten the installation screws. (See GLASS PANEL REMOVAL/INSTALLATION.)

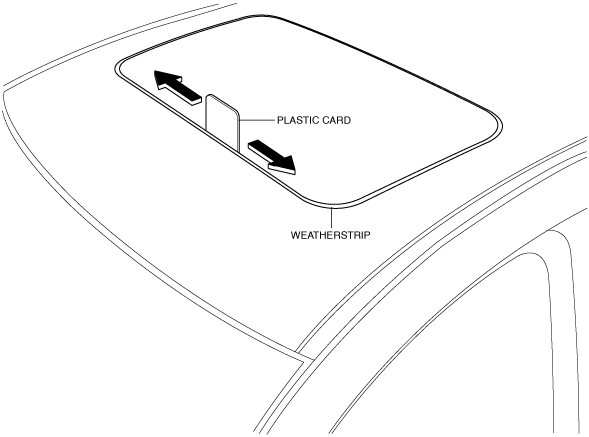

5. When inserting the plastic card between the weatherstrip and the body, and moving the plastic card in the direction of the arrows shown in the figure, verify that the plastic card has resistance.

am6zzw00011323

• If the sunroof is not shut tightly, readjust by performing Steps 3 and 4.
