SUNROOF UNIT DISASSEMBLY/ASSEMBLY

id091500800800

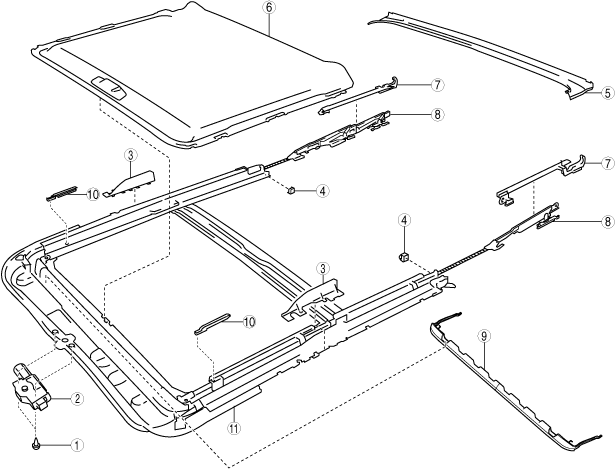

1. Disassemble in the order indicated in the table.

ac9wzw00005346

1	Screw
2	Sunroof motor
3	Screen
4	Rear stopper
5	Drip rail
6	Sunshade (See Sunshade Disassembly Note.)
7	Front guide (See Front Guide Disassembly Note.)
8	Decoration link
9	Deflector
10	Set plate
11	Sunroof frame

2. Assemble in the reverse order of disassembly.

Sunshade Disassembly Note

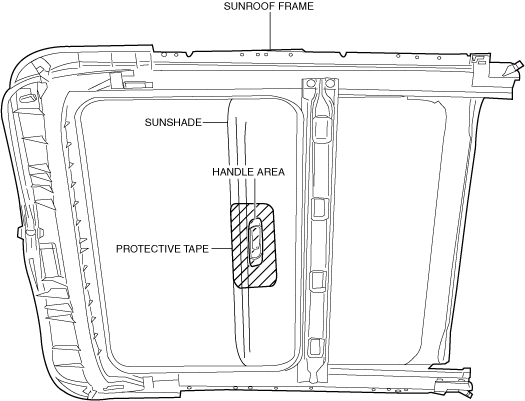

1. To prevent scratches or damage, affix protective tape to the position shown in the figure of the sunshade.

ac9wzw00005347

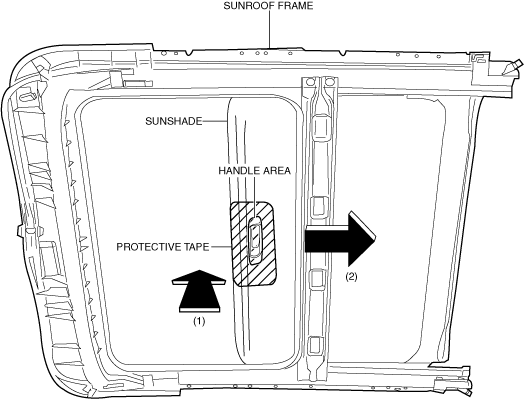

2. Pull the sunshade in the direction of the arrow in the order of (1), (2) and remove it.

Caution

• The sunshade may contact the sunroof frame and the handle area may be damaged. Remove the sunshade by sliding it in the direction of arrow (2) shown in the figure while lifting it in the direction of arrow (1).

ac9wzw00005348

Front Guide Disassembly Note

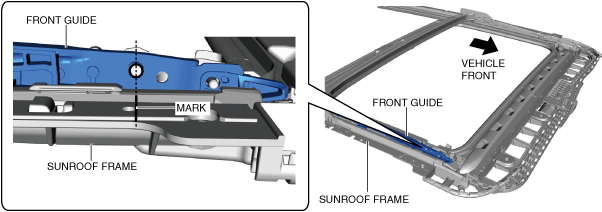

1. Perform mark the position shown in the figure for correct positioning.

Caution

• If the front guide is assembled to a wrong position, the glass panel may stop at the wrong position and may be damaged. Before removing the front guide, mark the position shown in the figure for correct positioning.

ac9wzw00005349
