ROOF MOLDING INSTALLATION

id091600447600

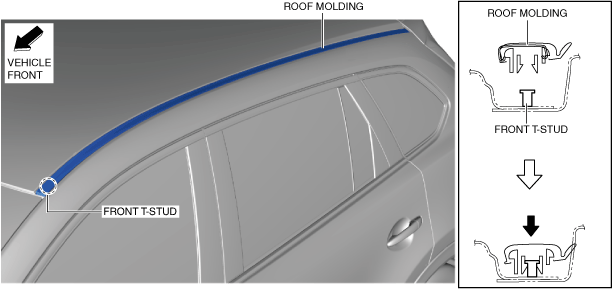

1.  Press the roof molding in the direction of the arrow shown in the figure and install it to the front T-stud.

ac9wzw00004759

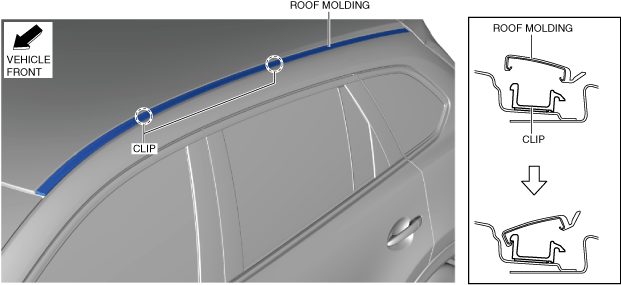

2.  Hook the roof molding to the clips.

ac9wzw00004760

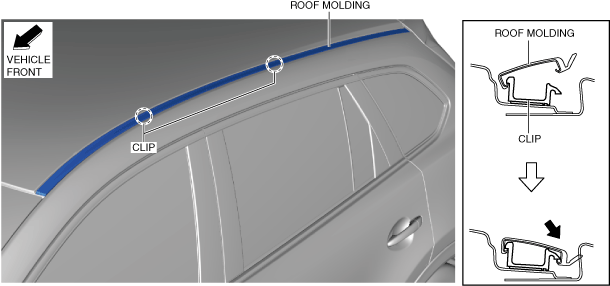

3.  Press the roof molding in the direction of the arrow shown in the figure and hook it to the clips.

ac9wzw00004761

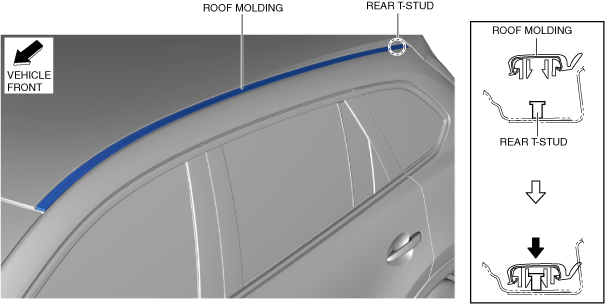

4.  Press the roof molding in the direction of the arrow shown in the figure and install it to the rear T-stud.

ac9wzw00004762

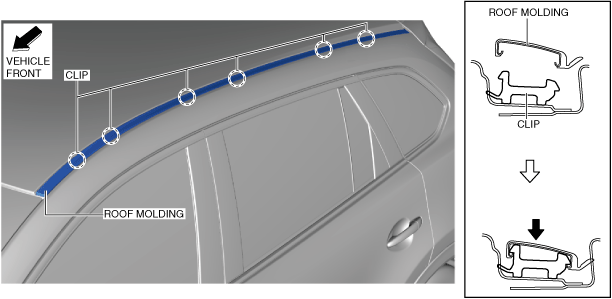

5.  Install the roof molding by pressing it in the direction of the arrow shown in the figure and hook it to the clips.

ac9wzw00004763
