ROOF MOLDING REMOVAL

id091600447800

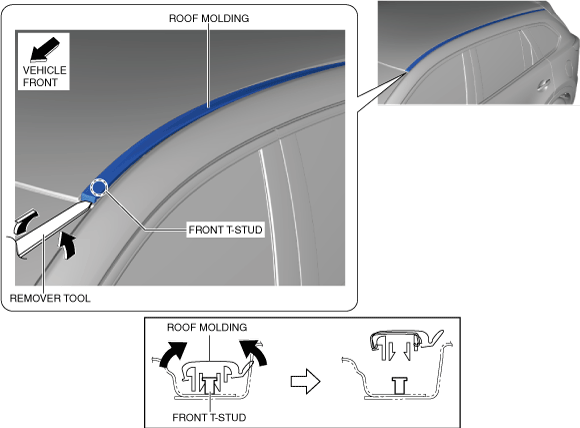

1.  Insert the remover tool in the position shown in the figure.

ac9wzw00004764

2.  Move the remover tool in the direction of the arrows shown in the figure and detach the roof molding from the front T-stud.

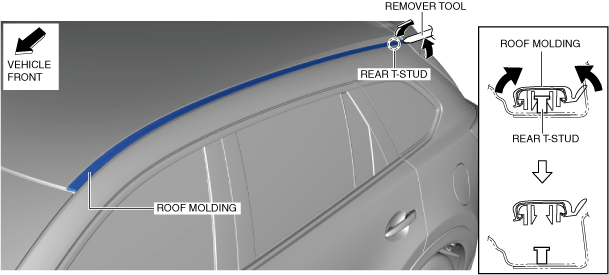

3.  Insert the remover tool in the position shown in the figure.

ac9wzw00004765

4.  Move the remover tool in the direction of the arrows shown in the figure and detach the roof molding from the rear T-stud.

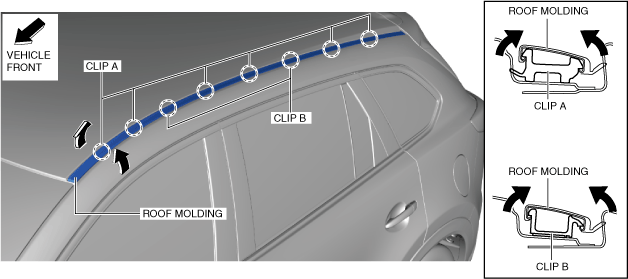

5.  Rotate the roof molding in the direction of the arrows shown in the figure while pulling it up and remove it starting from the clips at the front of the vehicle.

ac9wzw00004766

6.  Remove the roof molding.
