SAIL GARNISH REMOVAL/INSTALLATION

id091600451200

1.  Open the front door.

2.  Fully open the front door glass.

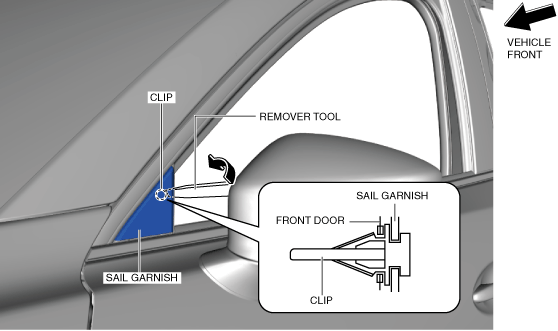

3.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrow and detach the sail garnish clip.

ac9uuw00006856

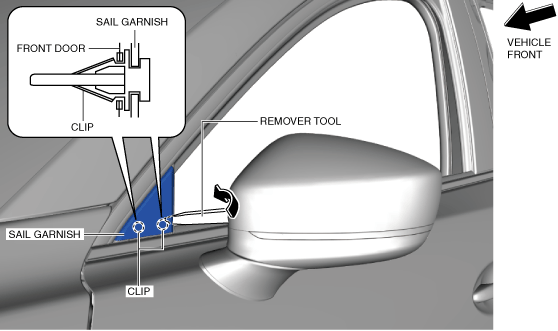

4.  Insert a remover tool into the position shown in the figure, move it in the direction of the arrow and detach the sail garnish clips.

ac9uuw00006857

5.  Remove the sail garnish.

6.  Install in the reverse order of removal. (See Sail Garnish Installation Note.)

Sail Garnish Installation Note

Not reusing sail garnish

1.  After installing the sail garnish, peel off the protective film on the sail garnish. (With protective film)
