FRONT FENDER MOLDING REMOVAL/INSTALLATION

id091600802100

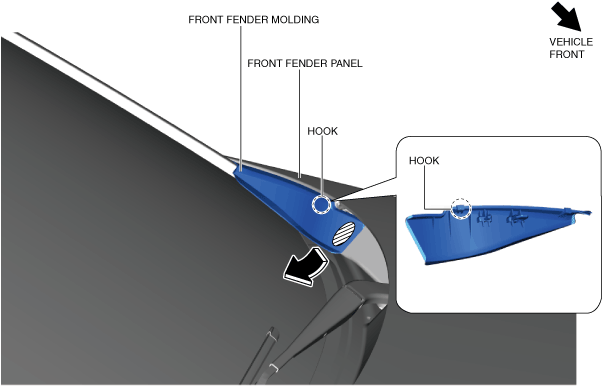

1.  Press the shaded area shown in the figure in the direction of the arrow and detach hook from the front fender panel.

ac9uuw00006909

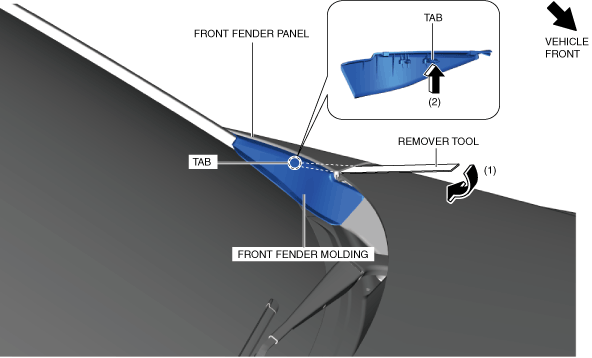

2.  Move the remover tool in the direction of arrow (1) and detach the front fender molding tab from the front fender panel in the direction of arrow (2) shown in the figure.

ac9wzw00005352

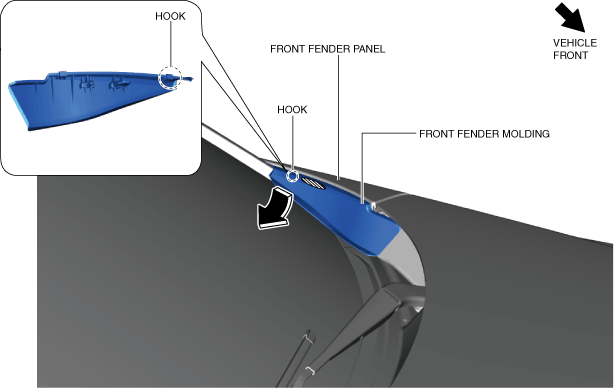

3.  Press the shaded area shown in the figure in the direction of the arrow and detach hook from the front fender panel.

ac9uuw00006911

4.  Remove the front fender molding.

5.  Install in the reverse order of removal.
