REAR BELTLINE MOLDING REMOVAL/INSTALLATION

id091600804700

1.  Fully open the rear door glass.

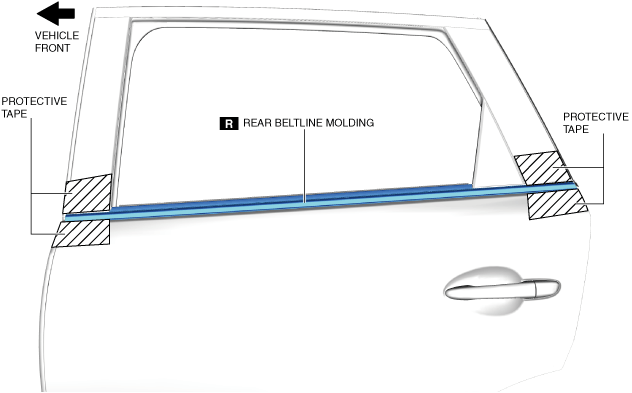

2.  Affix the protective tape to the positions shown in the figure to prevent scratches and damage.

ac9wzw00004730

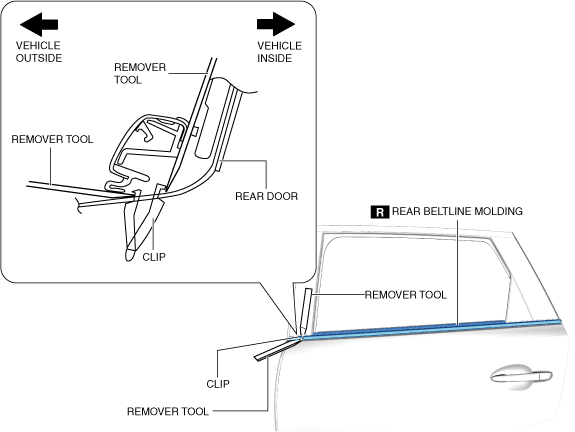

3.  Insert remover tools into the position shown in the figure, and detach the rear beltline molding clip from the rear door.

ac9uuw00006939

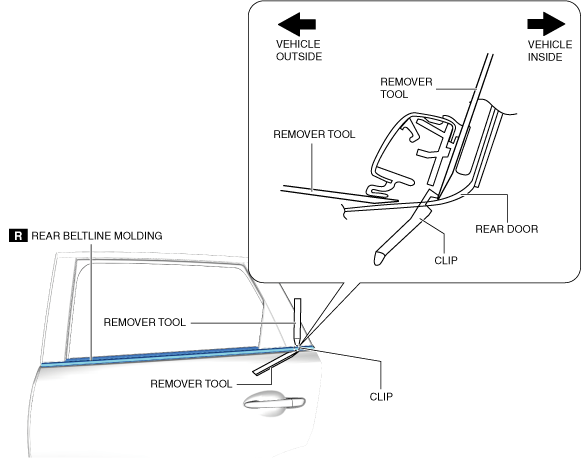

4.  Insert remover tools into the position shown in the figure, and detach the rear beltline molding clip from the rear door.

ac9uuw00006940

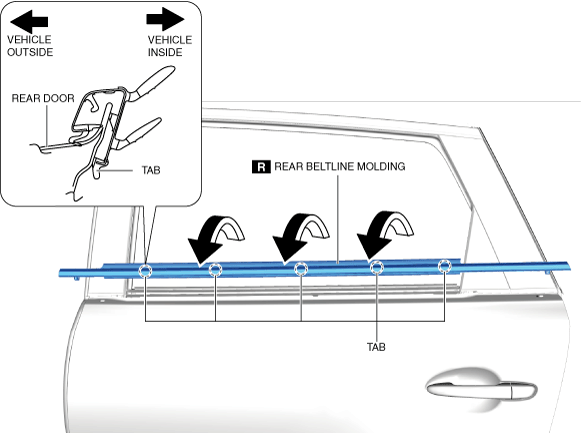

5.  Rotate the rear beltline molding in the direction of the arrows shown in the figure and detach the rear beltline molding tabs from the rear door.

ac9wzw00004467

6.  Remove the rear beltline molding.

7.  Install in the reverse order of removal.
