FRONT SPLASH SHIELD REMOVAL/INSTALLATION

id091600808500

LH

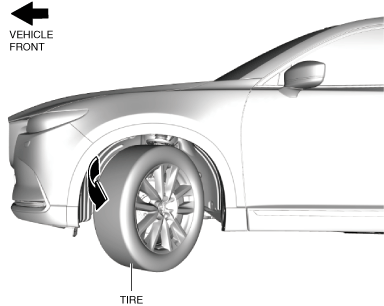

1.  Turn the steering wheel in the direction of the arrow shown in the figure so that the front side of the tire is facing outward.

ac9wzw00003935

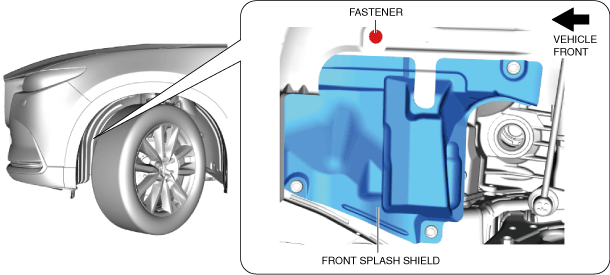

2.  Remove the fastener from the front mudguard.

ac9wzw00003936

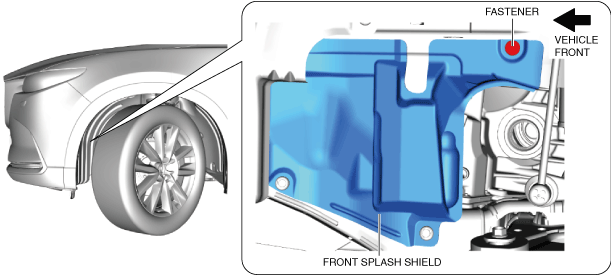

3.  Remove the fastener from the front splash shield.

ac9wzw00003937

4.  Remove the fastener from the front splash shield.

ac9wzw00003938

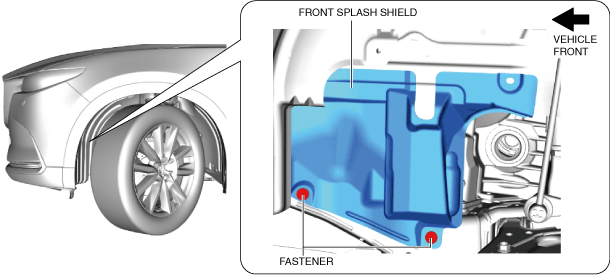

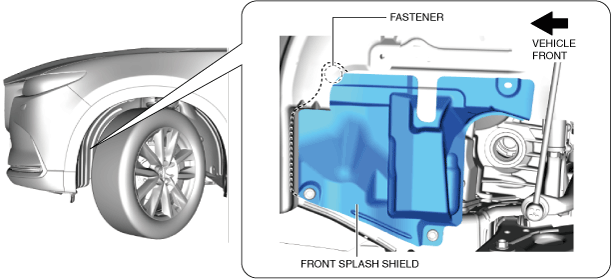

5.  Remove the fasteners from the front splash shield.

ac9wzw00003939

6.  Remove the front splash shield.

7.  Install in the reverse order of removal.

RH

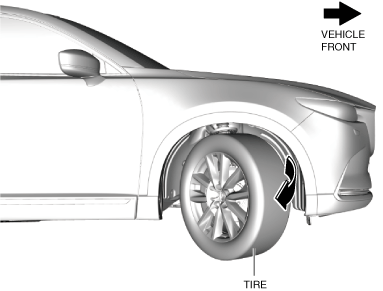

1.  Turn the steering wheel in the direction of the arrow shown in the figure so that the front side of the tire is facing outward.

ac9wzw00003940

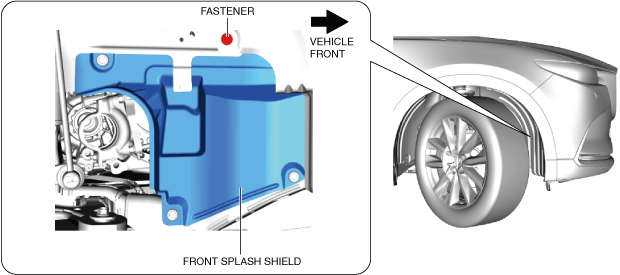

2.  Remove the fastener from the front mudguard.

ac9wzw00003941

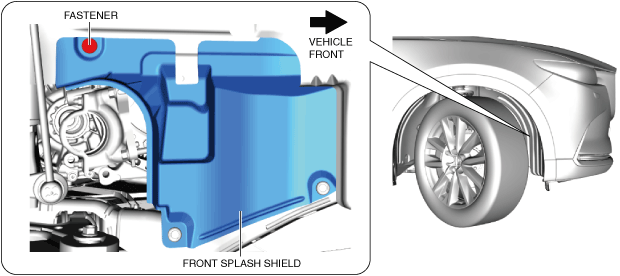

3.  Remove the fastener from the front splash shield.

ac9wzw00003942

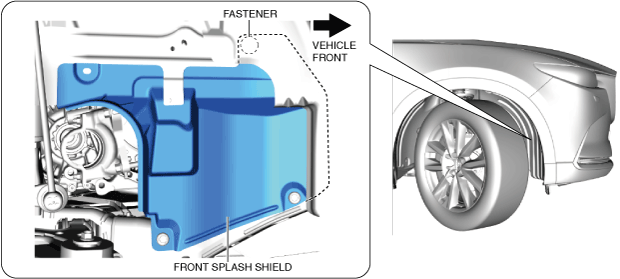

4.  Remove the fastener from the front splash shield.

ac9wzw00003943

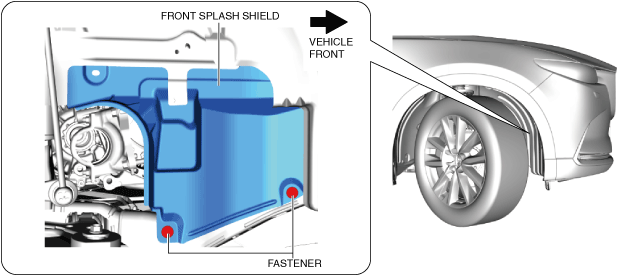

5.  Remove the fasteners from the front splash shield.

ac9wzw00003944

6.  Remove the front splash shield.

7.  Install in the reverse order of removal.
