REAR MUDGUARD REMOVAL/INSTALLATION

id091600812400

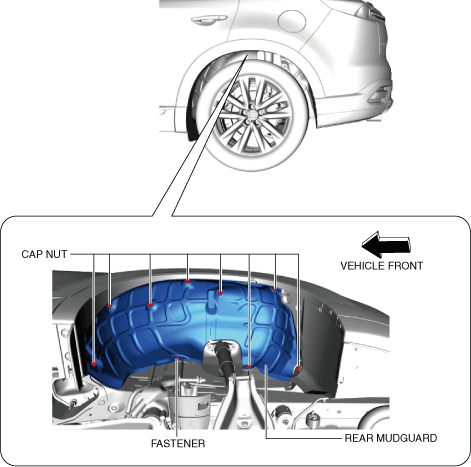

LH

1.  Remove the cap nuts and fastener.

ac9uuw00006959

2.  Remove the rear mudguard.

3.  Install in the reverse order of removal.

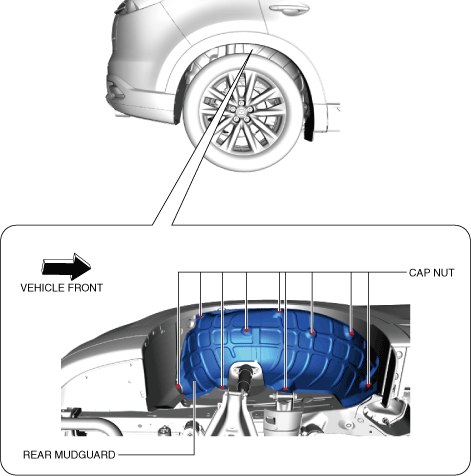

RH

1.  Remove the cap nuts.

ac9uuw00006960

2.  Remove the rear mudguard.

3.  Install in the reverse order of removal.
