FLOOR UNDER COVER REMOVAL/INSTALLATION

id091600820200

Floor Under Cover No.1

1.  Lift up the vehicle.

2.  Remove the floor under cover No.2. (See Floor Under Cover No.2.)

3.  Remove the fasteners.

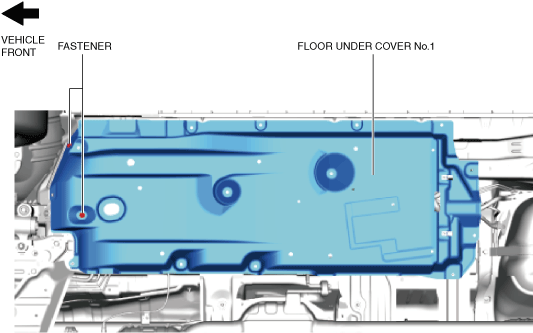

ac9uuw00007005

4.  Remove the bolts and cap nut.

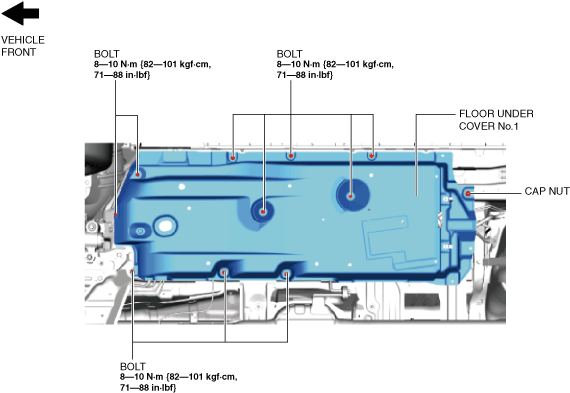

ac9uuw00007006

5.  Remove the floor under cover No.1.

6.  Install in the reverse order of removal.

Floor Under Cover No.2

2WD

1.  Lift up the vehicle.

2.  Remove the fastener.

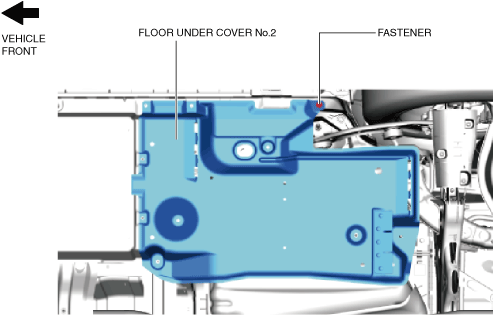

ac9uuw00007007

3.  Remove the bolts and nuts.

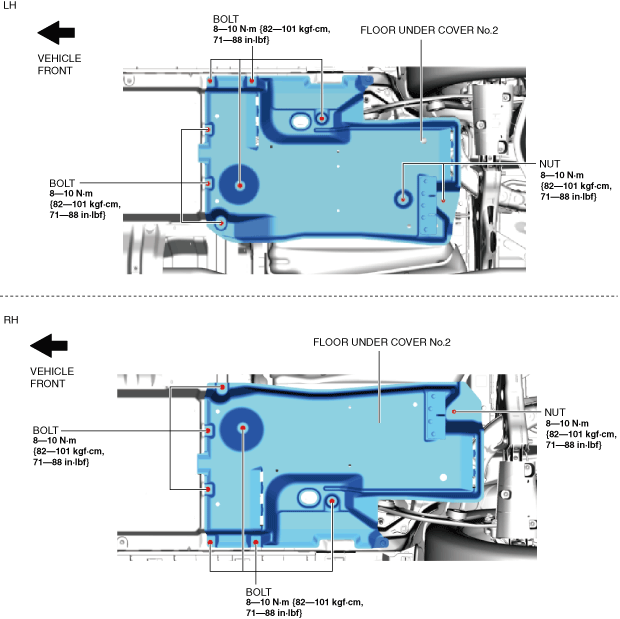

ac9uuw00007008

4.  Remove the floor under cover No.2 in the direction of the arrow shown in the figure.

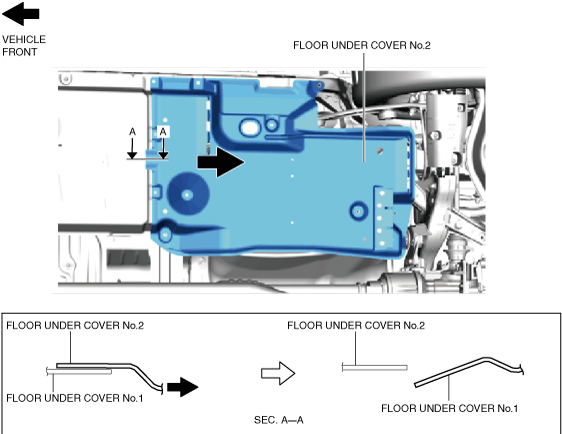

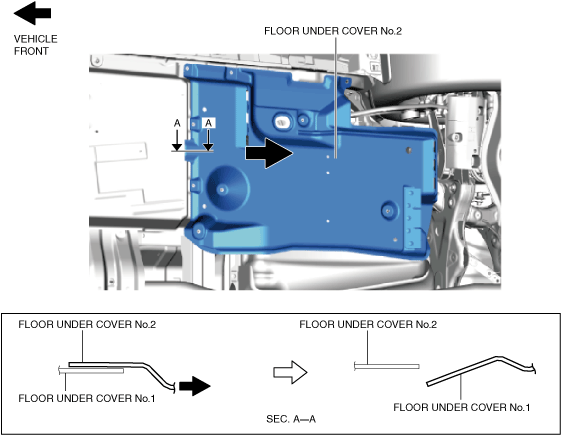

ac9uuw00007009

5.  Install in the reverse order of removal.

4WD

1.  Lift up the vehicle.

2.  Remove the bolts and nuts.

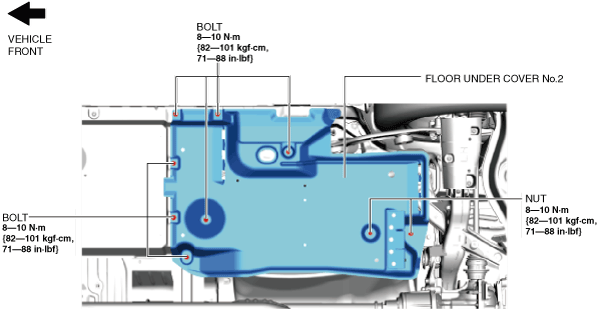

ac9uuw00007010

3.  Remove the fastener.

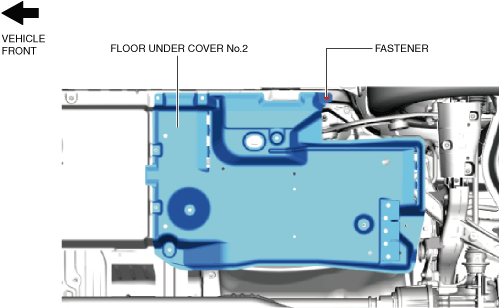

ac9uuw00007011

4.  Remove the floor under cover No.2 in the direction of the arrow shown in the figure.

ac9uuw00007012

5.  Install in the reverse order of removal.
