FRONT UNDER COVER No.1 REMOVAL/INSTALLATION

id091600888800

1.  Lift up the vehicle.

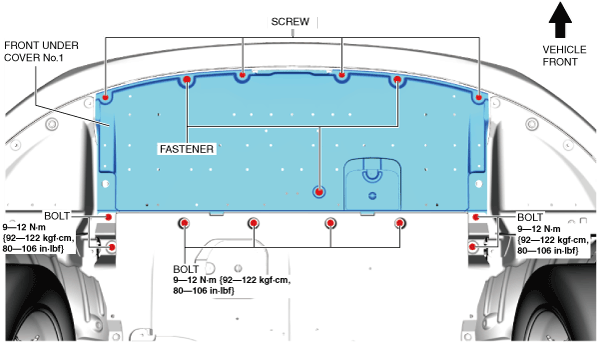

2.  Remove the bolts and fasteners.

ac9wzw00004447

3.  Remove the screws.

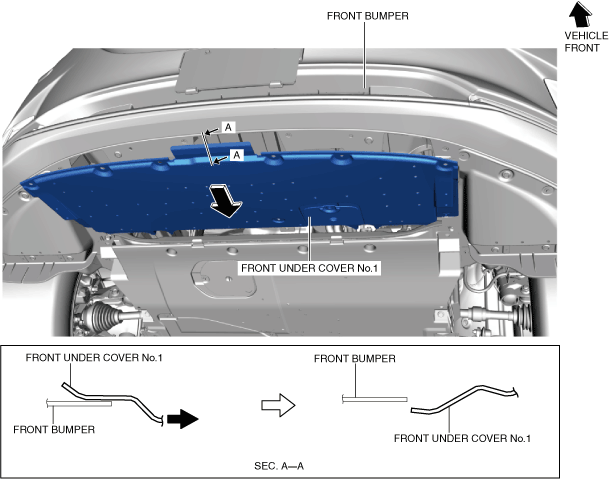

4.  Move the front under cover No.1 in the direction of the arrow shown in the figure and remove it.

ac9wzw00005357

5.  Install in the reverse order of removal.
