REAR DEFLECTOR REMOVAL/INSTALLATION

id091600900300

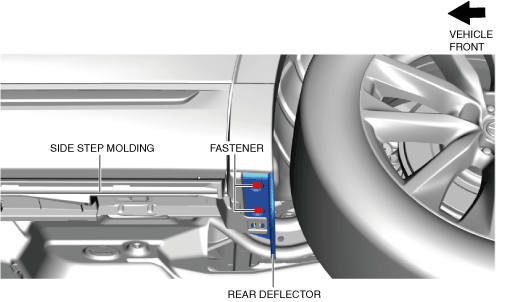

1.  Remove the fasteners.

ac9uuw00007018

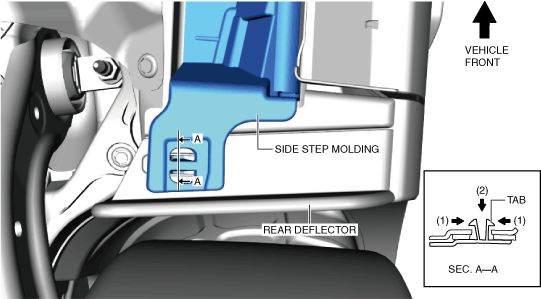

2.  While pressing the side step molding tabs in the direction of arrows (1) shown in the figure, move the side step molding in the direction of arrow (2) and detach the side step molding from the rear deflector.

ac9wzw00004773

3.  Remove the fastener.

ac9uuw00007020

4.  Remove the rear deflector.

5.  Install in the reverse order of removal.
