FRONT DEFLECTOR REMOVAL/INSTALLATION

id091600900800

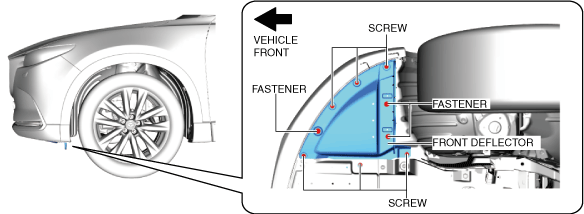

1.  Remove the screws and fasteners.

ac9uuw00007023

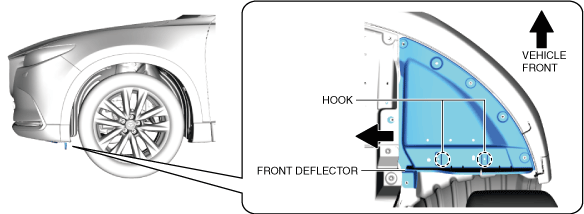

2.  Move the front deflector in the direction of the arrow shown in the figure and remove the front deflector from the front mudguard while detaching the hooks.

ac9uuw00007024

3.  Install in the reverse order of removal.
