ORNAMENT INSTALLATION

id091600994300

LH

2WD

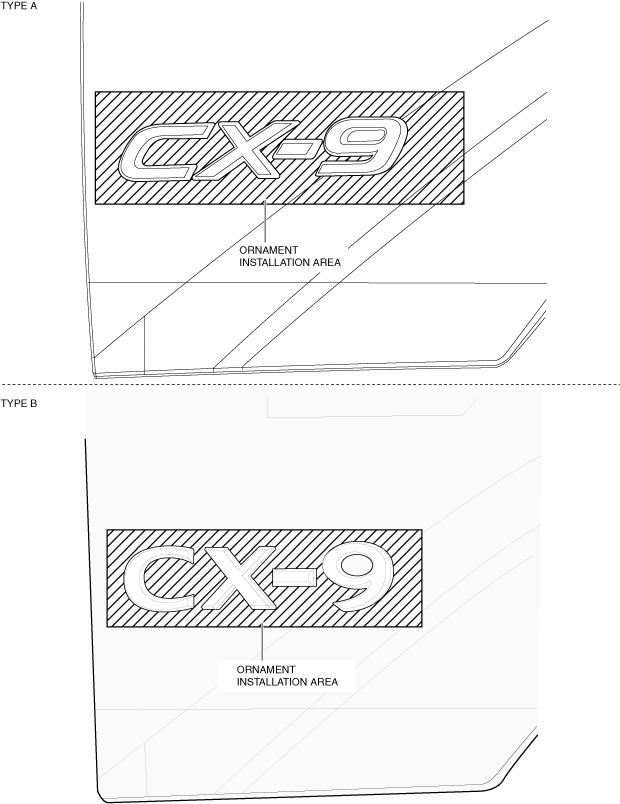

1.  Remove any grease or dirt from the ornament installation surface of the liftgate.

ac9wzw00005674

2.  Warm the ornament installation area to between 15 °C {59 °F} and 40 °C {104 °F}using a heat gun.

3.  Install the ornament to the position shown in the figure.

ac9wzw00005675

4.  Press the ornament using fingers to adhere the ornament to the liftgate.

4WD

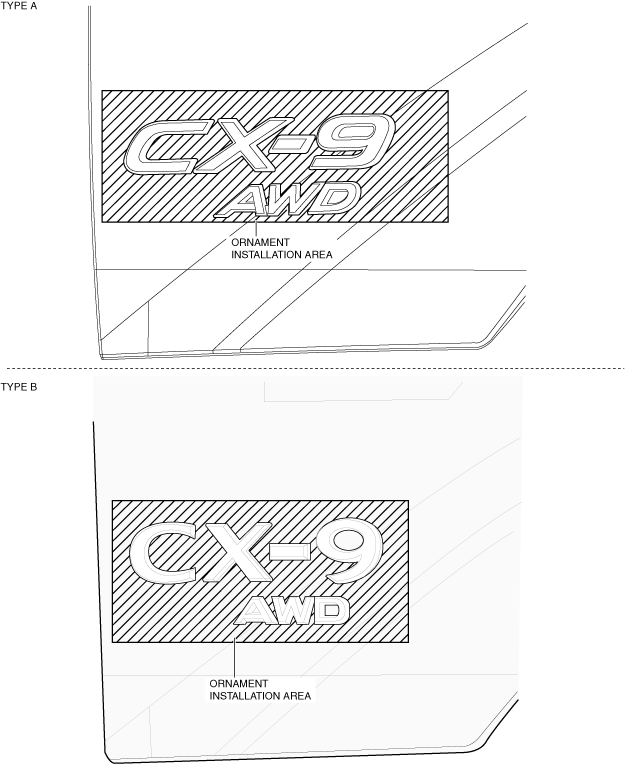

1.  Remove any grease or dirt from the ornament installation surface of the liftgate.

ac9wzw00005676

2.  Warm the ornament installation area to between 15 °C {59 °F} and 40 °C {104 °F}using a heat gun.

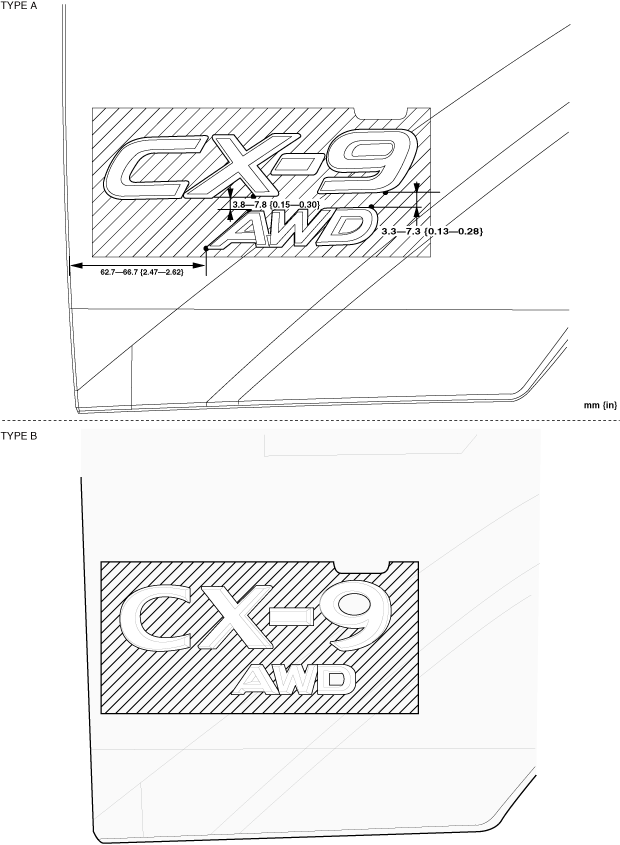

3.  Install the ornament to the position shown in the figure.

ac9wzw00005677

4.  Press the ornament using fingers to adhere the ornament to the liftgate.

RH

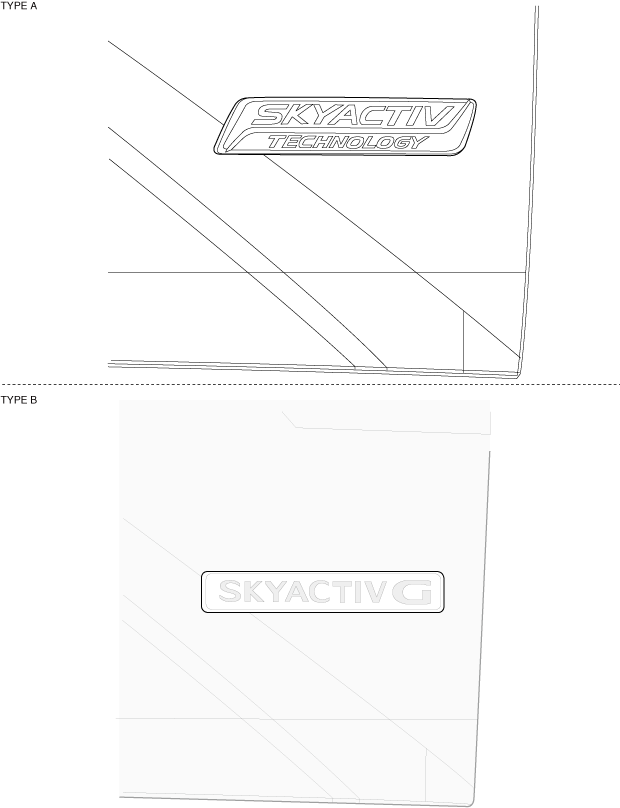

1.  Remove any grease or dirt from the ornament installation surface of the liftgate.

ac9wzw00005678

2.  Warm the ornament installation area to between 15 °C {59 °F} and 40 °C {104 °F}using a heat gun.

3.  Press the ornament using fingers to adhere the ornament to the liftgate.
